Same model may have multiple batches, images only for reference.

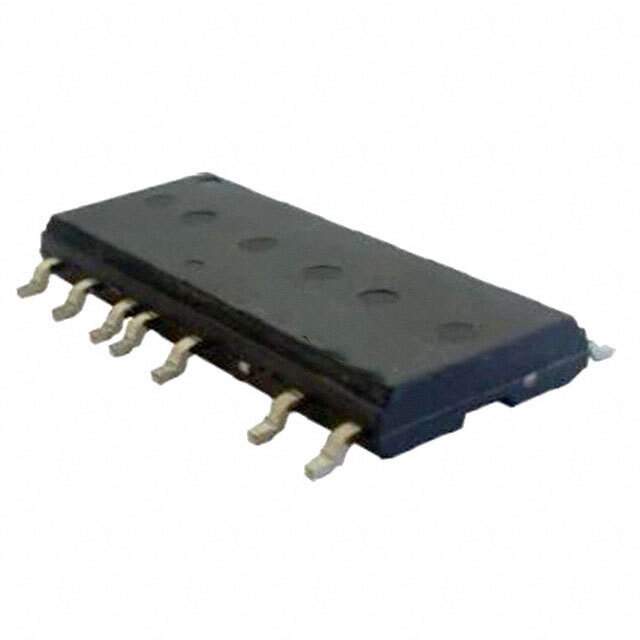

IRSM505-025PA Real Image
Same model may have multiple batches, images only for reference.

IRSM505-025PA

Part No IRSM505-025PA
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DRIVER 500V 23SOP / Half Bridge (3) Driver AC Motors UMOS 23-SOP
Datasheet
IRSM505-025PA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Full, Half-Bridge Drivers
Mfr Infineon Technologies
Series µIPM™-DIP
Package Tube
Product Status Not For New Designs
Output Configuration Half Bridge (3)
Applications AC Motors
Interface Logic
Load Type Inductive
Technology UMOS
Rds On (Typ) 3Ohm
Current - Output / Channel 1.5A
Current - Peak Output 11A
Voltage - Supply 13.5V ~ 16.5V
Voltage - Load 400V (Max)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Features Bootstrap Circuit
Fault Protection UVLO
Mounting SMD (SMT)
Package / Case 32-PowerSMD Module, 23 Leads
Supplier Device Package 23-SOP
Base Product Number IRSM505
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001544090,IFEINFIRSM505-025PA,2156-IRSM505-025PA
Standard Package 15
Win Source Part Number 976249-IRSM505-025PA
Ultra Librarian 3D Model Ultra Librarian IRSM505-025PA CAD Model

Description

The IRSM505-025PA is a half-bridge driver integrated circuit manufactured by Infineon Technologies.

  • Series: µIPM™-DIP
  • Application: AC motor applications
  • Package: 23-SOP
  • Current Output: 1.5A per channel
  • Voltage Load: Up to 400V
  • Features: Bootstrap circuit and UMOS technology
  • Fault Protection: Under-voltage lockout
  • Rds On: 3 Ohm
  • Peak Output Current: Up to 11A
  • Operating Temperature: -40°C to 150°C
  • Ideal for: Use in AC motor control applications
