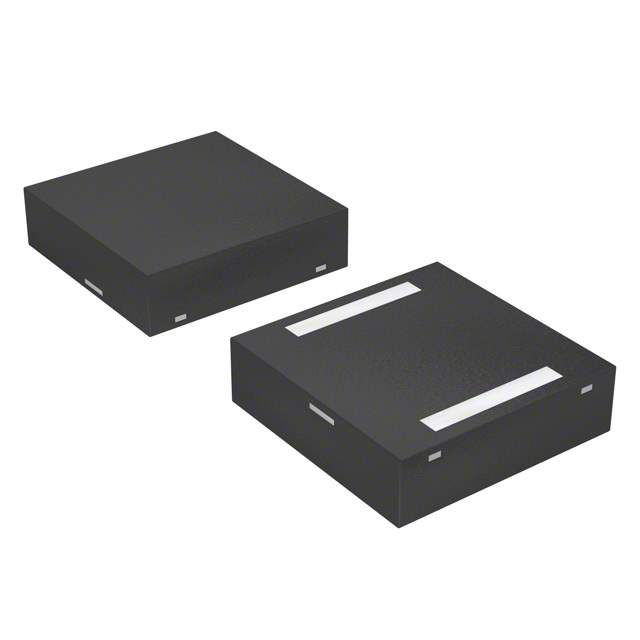

P3500Q12ALRP Real Image
Same model may have multiple batches, images only for reference.

P3500Q12ALRP

Part No P3500Q12ALRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description SIDACTOR BI 400V 150A QFN SMD
Datasheet
P3500Q12ALRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Voltage - Breakover 400V
Voltage - Off State 320V
Voltage - On State 5V
Current - Peak Pulse (8/20μs) 150A
Peak Pulse Current(Ippm) 45A
Current - Hold (Ih) 150mA
Number of Elements 1
Capacitance 30pF
Mounting SMD (SMT)
Dimension 2-TDFN
Win Source Part Number 060989-P3500Q12ALRP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P3500Q12ALRP CAD Model

Description

The P3500Q12ALRP is a surface mount device (SMD) capacitor manufactured by Littelfuse Inc.

  • Capacitance: 30pF
  • Voltage-Off State: 320V
  • Voltage Breakover: 400V
  • Voltage-On State: 5V
  • Current Peak Pulse: 150A
  • Current Hold: 150mA
  • Dimension: 2-TDFN
  • Peak Pulse Current (Ippm): 45A
  • Application: Circuit protection
  • Status: Active
  • Supply and Demand: Balanced
