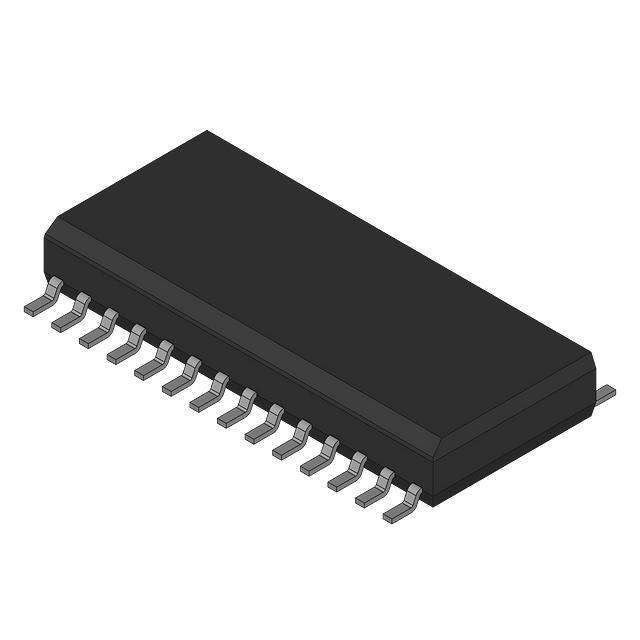

IRS2336SPBF Real Image
Same model may have multiple batches, images only for reference.

IRS2336SPBF

Part No IRS2336SPBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description HIGH VOLTAGE 3 PHASE GATE DRIVER IC | IC DRIVER BRIDGE 3-PHASE 28-SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube
Driven Configuration Half-Bridge
Channel Type 3-Phase
Number of Drivers 6
Gate Type IGBT, N-Channel MOSFET
Supply Voltage (V) 10V ~ 20V
Logic Voltage - VIL, VIH 0.8V, 2.5V
Current - Peak Output (Source, Sink) 200mA, 350mA
Input Type Inverting
High Side Voltage - Max (Bootstrap) 600V
Rise / Fall Time 125ns, 50ns
Temperature Range - Operating -40°C ~ 150°C
Mounting Style SMD
Manufacturer Package 28-SOIC
Supplier Device Package 28-SOIC
Family Part Number IRS2336SPBF
Manufacturer Pack Quantity 2,000
MSL Level 3 (168 Hours)
Win Source Part Number 1188795-IRS2336SPBF
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRS2336SPBF CAD Model

Description

The Infineon Technologies IRS2336SPBF is a 3-phase inverting input type half-bridge gate driver IC.

  • Packaging: Tube
  • Mounting Style: SMD
  • Number of Drivers: 6
  • Compatible Gate Types: IGBT and N-Channel MOSFET
  • Logic Voltage VIL: 0.8V
  • Logic Voltage VIH: 2.5V
  • Peak Output Current (Source): 200mA
  • Peak Output Current (Sink): 350mA
  • High Side Voltage (Max Bootstrap): 600V
  • Operating Temperature Range: -40°C to 150°C
  • Package: 28-SOIC
  • Rise Time: 125ns
  • Fall Time: 50ns
