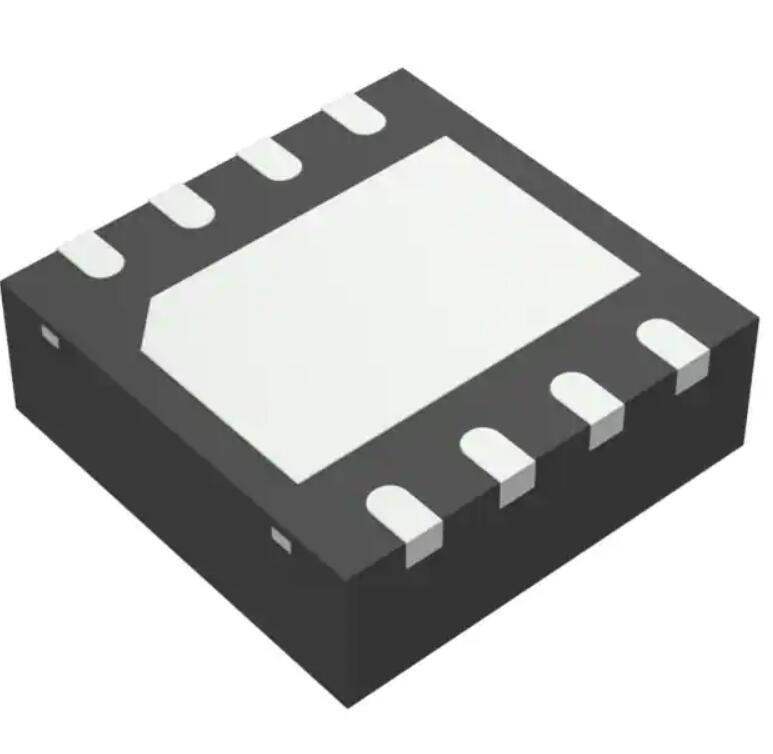

Microchip Technology MCP1406T-E/MF Product Overview

The MCP1406T-E/MF from Microchip Technology is a robust, high-speed power MOSFET driver that is designed to accommodate a wide array of applications. This driver is capable of delivering peak currents of up to 6A, making it an ideal choice for driving large capacitive loads with excellent speed and efficiency.

Key Features:

• High Peak Output Current: The device can output a peak current of 6A, providing the necessary drive for high-power and high-speed applications.
• Wide Operating Voltage Range: It operates over a broad voltage range from 4.5V to 18V, ensuring versatility across different power systems.
• Low Shoot-Through/Cross-Conduction Current: The MCP1406T-E/MF is designed to minimize the current that flows simultaneously through both the high-side and low-side power MOSFETs, which helps to reduce power loss and improve efficiency.
• Fast Propagation Delays: With propagation delays typically under 25ns, the driver enables quick response times, which is crucial for high-frequency operations.
• Latch-Up Protected: It is resistant to latch-up to a maximum temperature of 125°C, which offers additional reliability and robustness under extreme conditions.
• Thermal Shutdown: The built-in thermal shutdown feature provides protection against overheating, ensuring the longevity and stable operation of the device.
• Industry-Standard Pinout: The device comes in an 8-pin SOIC package with an industry-standard pinout, making it easy to integrate into existing designs.

Applications:

The MCP1406T-E/MF is highly versatile and can be used in a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Motor Control Circuits
• Class D Switching Amplifiers
• Pulse Transformer Drive

Conclusion:

With its high peak output current, fast switching speeds, and robust feature set, the MCP1406T-E/MF from Microchip Technology is an excellent choice for designers looking to improve the performance and reliability of their high-power MOSFET driving applications. Its thermal protection, wide voltage range, and high-speed operation make it a versatile and dependable component in any power management system.
