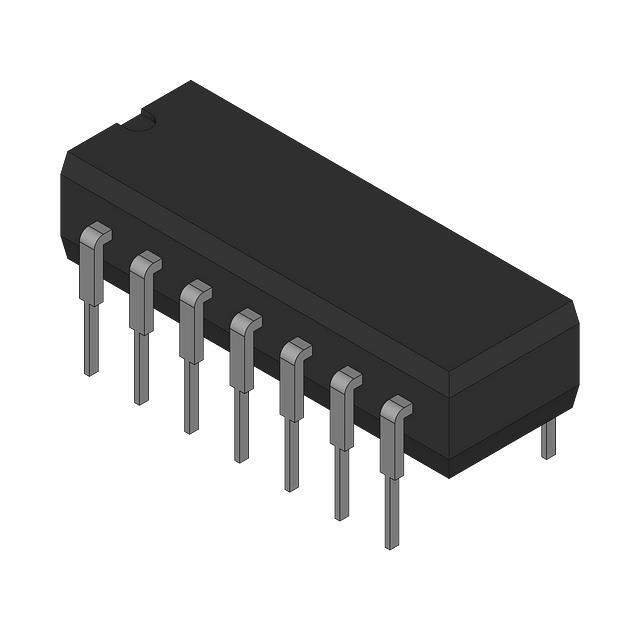

IRS21094PBF Real Image
Same model may have multiple batches, images only for reference.

IRS21094PBF

Part No IRS21094PBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DVR HALF BRIDGE 14-DIP
Datasheet
IRS21094PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Supply Voltage - Operating 10 V to 20 V
Logic Voltage - VIL, VIH 0.8V, 2.5V
Current - Peak Output (Source, Sink) 290mA, 600mA
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 600V
Rise and Fall Time 100ns, 35ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package 14-DIP
Win Source Part Number 1047748-IRS21094PBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRS21094PBF CAD Model

Description

The IRS21094PBF from Infineon Technologies is a high-performance integrated circuit.

  • Type: Synchronous, non-inverting, half-bridge driver
  • Driven Configuration: IGBT and N-channel MOSFET
  • Drivers: Two
  • Maximum Supply Voltage: 20V
  • Peak Output Current: 290mA and 600mA (source and sink)
  • High-Side Voltage: 600V
  • Rise and Fall Time: 100ns and 35ns
  • Package: 14-DIP
  • Status: Active
  • Temperature Range: -40°C to 150°C (TJ)
