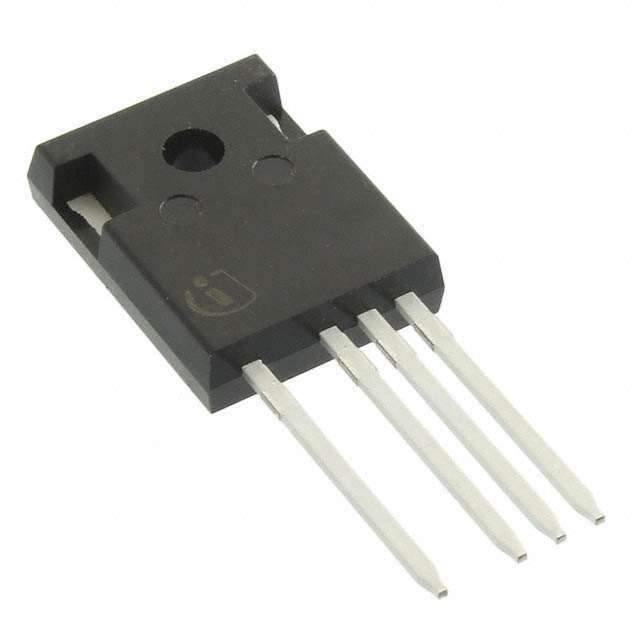

The Infineon Technologies IPZ60R040C7XKSA1 is an N-Channel MOSFET transistor designed for use in discrete semiconductor products.

• Series: CoolMOS™ C7
• Package: Tube
• Standard Package: 30
• Drain-to-Source Voltage (Vdss): 600V
• Continuous Drain Current (Id) @ 25°C: 50A (Tc)
• Maximum On-Resistance (Rds On) @ Id, Vgs: 40mOhm @ 24.9A, 10V
• Gate Charge (Qg) @ max Vgs: 107 nC @ 10 V
• Input Capacitance (Ciss) @ max Vds: 4340 pF @ 400 V
• Power Dissipation Limit: 227W (Tc)
• Temperature Range: -55°C to 150°C (TJ)
• Alternative: FCH041N65EFL4, STW56N60M2-4, STW48N60M2-4, IPZ60R125P6FKSA1, STW69N65M5-4, and IPZ60R060C7XKSA1
