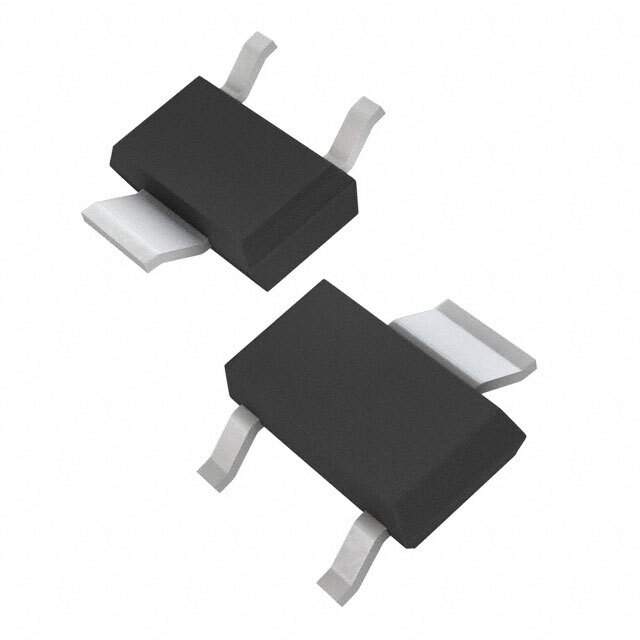

IPN80R1K2P7ATMA1

Part No IPN80R1K2P7ATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 800V 4.5A SOT223 / N-Channel 800 V 4.5A (Tc) 6.8W (Tc) Surface Mount PG-SOT223
Datasheet
IPN80R1K2P7ATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series CoolMOS™ P7
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 800 V
Current - Continuous Drain (Id) @ 25°C 4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 1.2Ohm @ 1.7A, 10V
Vgs(th) (Max) @ Id 3.5V @ 80µA
Gate Charge (Qg) (Max) @ Vgs 11 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 300 pF @ 500 V
Power Dissipation (Max) 6.8W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-SOT223
Package / Case TO-261-4, TO-261AA
Base Product Number IPN80R1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 2156-IPN80R1K2P7ATMA1-448,IPN80R1K2P7ATMA1DKR,SP001664998,IPN80R1K2P7ATMA1-ND,IPN80R1K2P7ATMA1TR,IPN80R1K2P7ATMA1CT
Standard Package 3,000
Win Source Part Number 998094-IPN80R1K2P7ATMA1
Ultra Librarian 3D Model Ultra Librarian IPN80R1K2P7ATMA1 CAD Model

Description

The IPN80R1K2P7ATMA1 is a single N-channel MOSFET transistor designed for discrete semiconductor products.

  • Type: N-channel MOSFET
  • Application: Discrete Semiconductor Products
  • Vdss: 800V
  • Id: 4.5A (Tc) @ 25°C
  • Rds On: 1.2Ohm @ 1.7A and 10V
  • Qg: 11 nC @ 10V
  • Ciss: 300 pF @ 500V
  • Package: Tape and Reel, 3,000 units
  • Mounting: SMD (SMT)
  • Case: TO-261-4, TO-261AA
  • Operating Temperature: -55°C to 150°C (TJ)
  • Manufacturer: Infineon Technologies
  • ECCN: EAR99
  • REACH: Not affected
  • Alternative Names: IPN80R1K2P7ATMA1DKR, SP001664998
