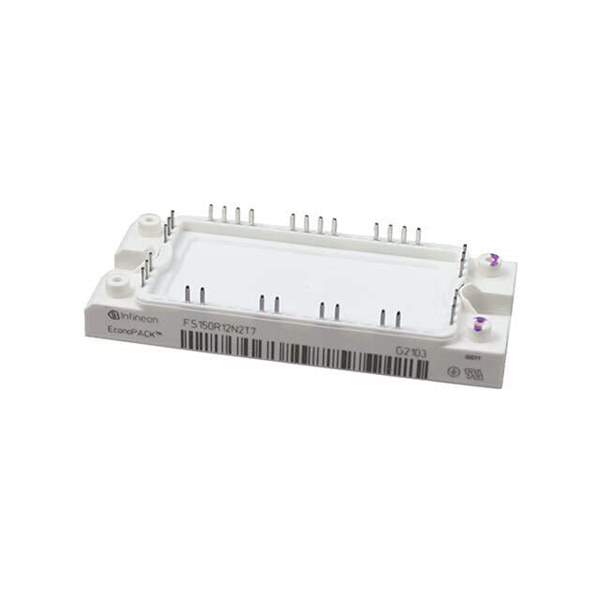

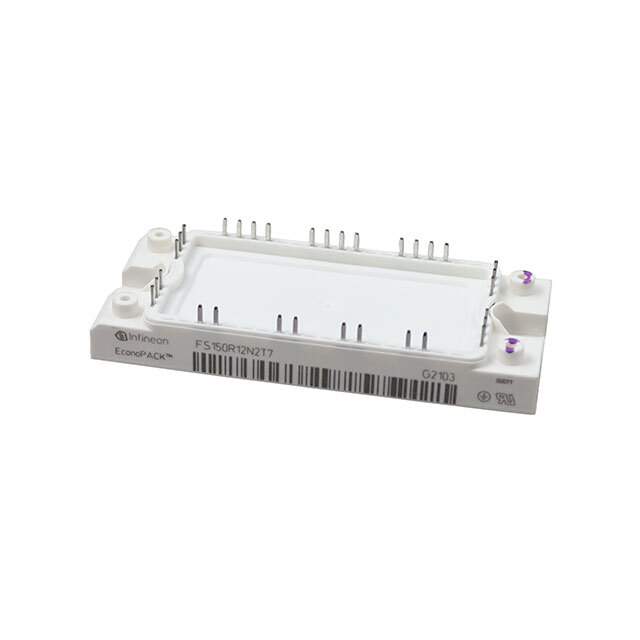

FS150R12N2T7BPSA1 Real Image
Same model may have multiple batches, images only for reference.

FS150R12N2T7BPSA1

Part No FS150R12N2T7BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description LOW POWER ECONO AG-ECONO2-6 / IGBT Module Trench Field Stop Three Level Inverter 1200 V 150 A 20 mW Chassis Mount AG-ECONO2
Datasheet
FS150R12N2T7BPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series EconoPACK™ 2
Package Tray
IGBT Type Trench Field Stop
Configuration Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 150 A
Power - Max 20 mW
Vce(on) (Max) @ Vge, Ic 1.8V @ 15V, 150A
Current - Collector Cutoff (Max) 1.2 µA
Input Capacitance (Cies) @ Vce 30.1 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package AG-ECONO2
Base Product Number FS150R12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP005341942,448-FS150R12N2T7BPSA1
Standard Package 10
Win Source Part Number 996350-FS150R12N2T7BPSA1
Ultra Librarian 3D Model Ultra Librarian FS150R12N2T7BPSA1 CAD Model

Description

The Infineon Technologies FS150R12N2T7BPSA1 is a discrete semiconductor product that falls under the category of transistors - IGBTs - modules.

  • Series: EconoPACK™ 2
  • Package: tray
  • Standard Package: 10
  • Configuration: three level inverter
  • Type: trench field stop IGBT
  • Maximum Collector Emitter Breakdown Voltage: 1200V
  • Maximum Collector Current: 150A
  • ECCN: EAR99
  • REACH: unaffected
