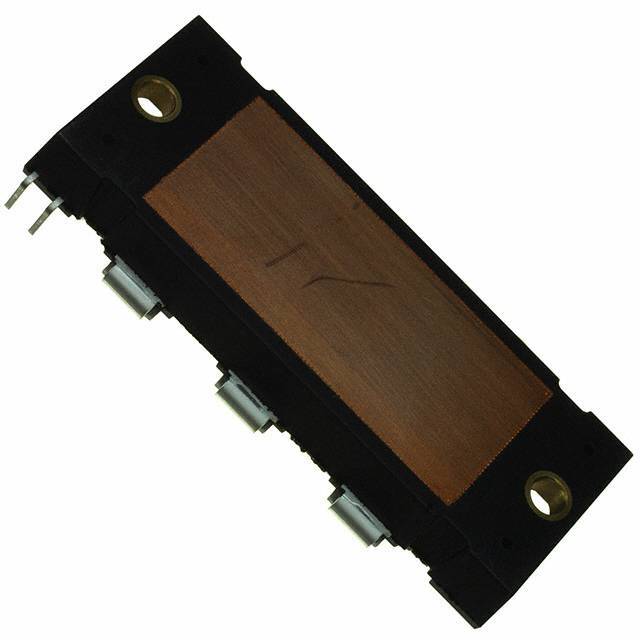

Same model may have multiple batches, images only for reference.

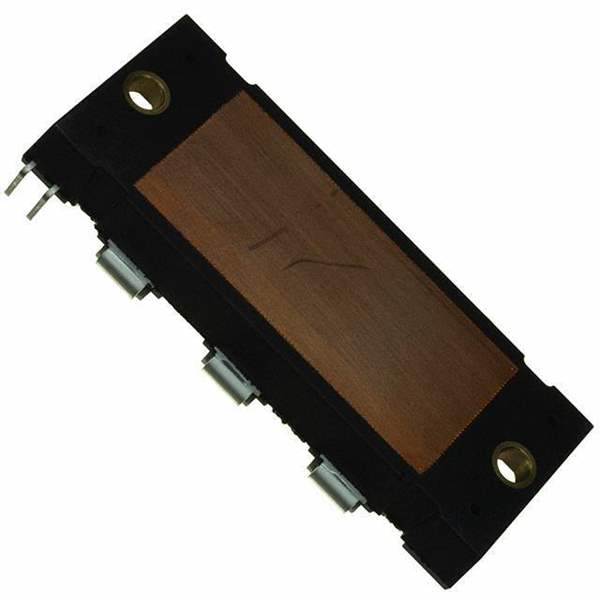

FP7G50US60 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FP7G50US60

Part No FP7G50US60
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Modules
Description MODULE IGBT 600V 50A EPM7
Datasheet
FP7G50US60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Status Obsolete(EOL)
Configuration Half Bridge
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 50A
Maximum Power Dissipation 250W
Collector-emitter saturation voltage(Max) 2.8V @ 15V, 50A
Collector Cut-off Current(Max) 250μA
Input Capacitance (Cies) @ Vce 2.92nF @ 30V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Chassis Mount
Case / Package EPM7
Win Source Part Number 084644-FP7G50US60
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FP7G50US60 CAD Model

Description

The Fairchild/ON Semiconductor FP7G50US60 is a high-popularity electronic component commonly used in various applications. This half-bridge configuration component has a maximum collector-emitter breakdown voltage of 600V and a maximum power dissipation of 250W. The FP7G50US60 has a collector-emitter saturation voltage of 2.8V at 15V and 50A. It is an obsolete (EOL) component with limited supply and demand. The FP7G50US60 is a perfect fit for applications that require high power dissipation.
