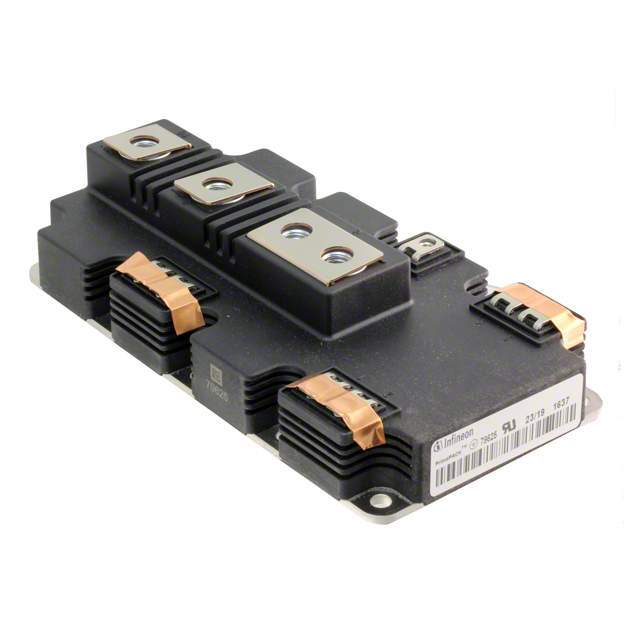

FF600R12IE4 Infineon Technologies FF600R12IE4 label picture FF600R12IE4 real image
Same model may have multiple batches, images only for reference.
FF600R12IE4 Infineon Technologies FF600R12IE4 label picture FF600R12IE4 real image
FF600R12IE4 Infineon Technologies FF600R12IE4 label picture FF600R12IE4 real image
Same model may have multiple batches, images only for reference.

FF600R12IE4

Part No FF600R12IE4
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description Trans IGBT Module N-CH 1200V 600A 3350000mW 8-Pin PRIME2-1 Tray / IGBT MODULE 1200V 600A
Datasheet
FF600R12IE4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies Industrial Power and Controls Americas
Status Active
IGBT Type Trench Field Stop
Configuration Half Bridge
VCEO Maximum Collector-Emitter Breakdown Voltage 1200V
Maximum Current Collector 600A
Maximum Power Dissipation 3.35W
Collector-emitter saturation voltage(Max) 2.05V @ 15V, 600A
Collector Cut-off Current(Max) 5mA
Input Capacitance (Cies) @ Vce 37nF @ 25V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Chassis Mount
Case / Package Module
Win Source Part Number 263579-FF600R12IE4
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name FF600R12IE4
Introduction Date October 24, 2007
ECCN EAR99
Country of Origin Germany
Halogen Free Not Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian FF600R12IE4 CAD Model

Description

The Infineon Technologies FF600R12IE4 is an IGBT module that is used in industrial power and control applications. Moreover, the supply and demand status of this component is limited, which means it is difficult to find.

  • Maximum Collector Current: 600A
  • Collector-Emitter Breakdown Voltage: 1200V
