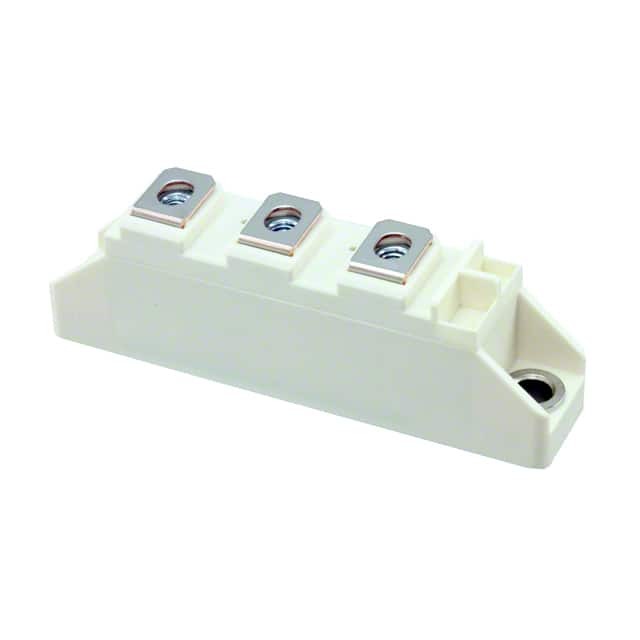

DD100N16SHPSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

DD100N16SHPSA1

Part No DD100N16SHPSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1600V 100A / Diode Array 1 Pair Series Connection Standard 1600 V 130A Chassis Mount Module
Datasheet
DD100N16SHPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Infineon Technologies
Package Tray
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) (per Diode) 130A
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number DD100N16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SP001272774,DD100N16S-ND,DD100N16S
Standard Package 12
Win Source Part Number 1225525-DD100N16SHPSA1
Ultra Librarian 3D Model Ultra Librarian DD100N16SHPSA1 CAD Model

Description

The DD100N16SHPSA1 is a diode rectifier array module from Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Diode Configuration: 1 Pair Series Connection
  • Average Rectified Current: 130A per Diode
  • Maximum Reverse Voltage: 1600V
  • Mounting Type: Chassis Mount
  • Package: Module
  • Operating Temperature: -40°C to 125°C
  • Standard Package: 12
