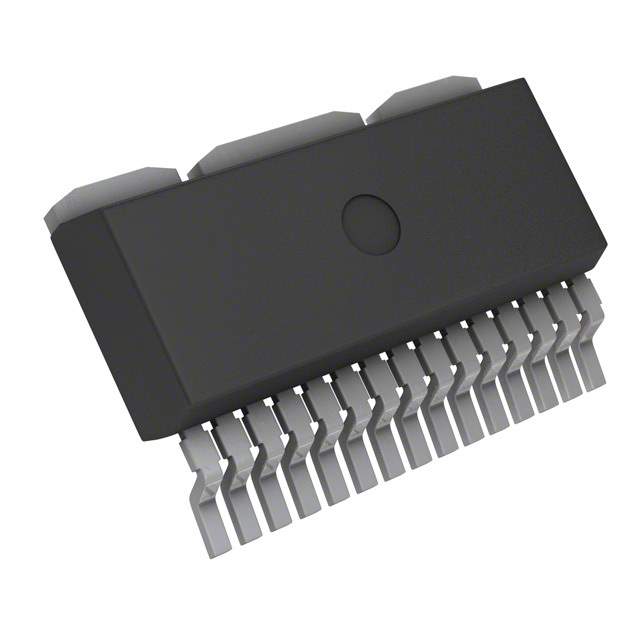

BTS7750GP

Name: BTS7750GP
Brand: Infineon Technologies
SKU: 572939
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BTS7750GP
Manufacturer	Infineon Technologies
Catalog	PMIC - Full, Half - Bridge Drivers
Description	TrilithIC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits (ICs)
Manufacturer	Infineon Technologies
Series	TrilithIC
Packaging	Reel - TR
Part Status	Obsolete(EOL)
Output Configuration	Half Bridge (2)
Applications	DC Motors, General Purpose
Interface	Logic
Load Type	Inductive
Technology	DMOS
Rds On (Typ)	45 mOhm LS, 70 mOhm HS
Current - Peak Output	12A
Operating Supply Voltage	1.8 V ~ 42 V
Voltage - Load	1.8 V ~ 42 V
Operating Temperature Range	-40°C ~ 150°C (TJ)
Features	Status Flag
Fault Protection	ESD, Over Temperature, Short Circuit, UVLO
Mounting	SMD
Package	TO-263-18 (15 Leads + 3 Tabs)
Manufacturer Package	P-TO263-15
Win Source Part Number	1155627-BTS7750GP
Manufacturer Homepage	www.infineon.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	BTS 7750
Introduction Date	January 30, 2001
ECCN	EAR99
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian BTS7750GP CAD Model

Description

The Infineon BTS7750GP is a TrilithIC half-bridge DC motor driver for general-purpose applications.

Manufacturer: Infineon
Type: TrilithIC half-bridge DC motor driver
Supply Voltage: 1.8 V to 42 V
Low-Side Switch On-Resistance: 45 mOhm (typical)
High-Side Switch On-Resistance: 70 mOhm (typical)
Fault Protections: ESD, over-temperature, short-circuit, and under-voltage lockout
Package: TO-263-18 package with 15 leads and 3 tabs
Status: Obsolete (EOL)
Popularity: Medium
