The TPS65056RSMR is a multi-channel power management integrated circuit (PMIC) designed by Texas Instruments (TI) to provide an efficient and compact power solution for portable and battery-powered electronics. This advanced chip offers a high level of integration to minimize the number of external components required, which is particularly beneficial for space-constrained applications.

Key Features

• Multiple Output Voltages: The TPS65056RSMR provides several regulated output voltages from a single input, making it a versatile choice for systems requiring multiple power rails.
• High-Efficiency Operation: Designed with efficiency in mind, this PMIC ensures longer battery life and reduced heat generation, thanks to its switch-mode power supply architecture.
• Integrated Power Switches: The inclusion of built-in power switches for the DC/DC converters reduces the need for external FETs, thereby saving board space and cost.
• Programmable Voltage Sequencing: This feature enables designers to configure the power-up and power-down sequences of the output voltages, which is critical for systems with multiple power domains.

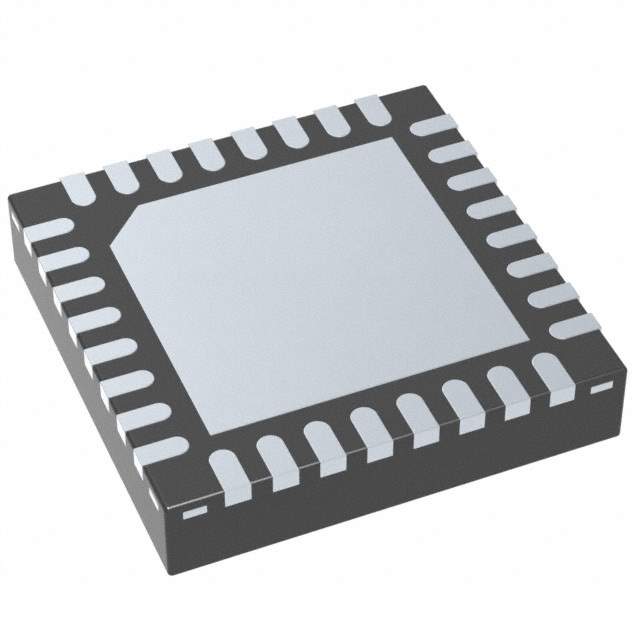

• Small Footprint: The TPS65056RSMR comes in a compact QFN package, making it suitable for portable devices where space is at a premium.

Applications

The TPS65056RSMR is ideal for a variety of applications, including:

• Smartphones and Tablets
• Portable Media Players
• Handheld Gaming Devices
• Wireless Communication Modules
• GPS Devices

Technical Specifications

The device operates over a wide input voltage range and includes multiple voltage regulators, each with its own set of features designed to ensure stable and reliable operation across a range of conditions. It also features over-temperature and over-current protection, adding an extra layer of safety for the end product.

With its robust feature set and compact design, the TPS65056RSMR from Texas Instruments stands out as a comprehensive power management solution for modern electronic devices.
