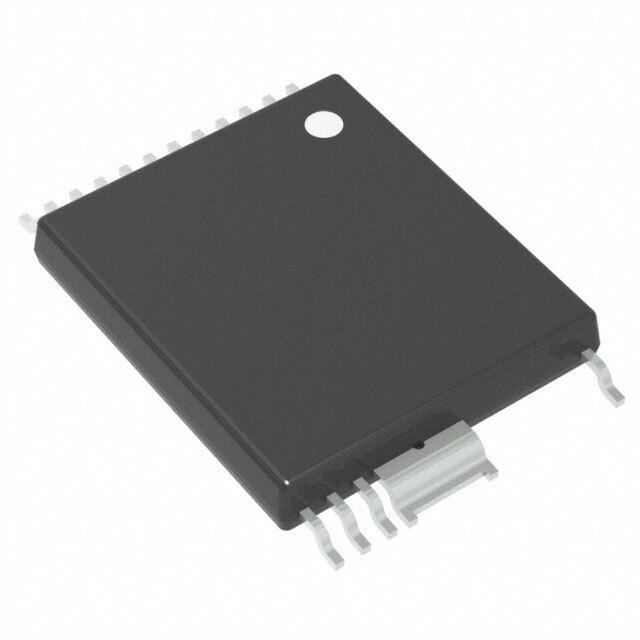

BRD1161C-TL

Part No BRD1161C-TL
Manufacturer Power Integrations
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRV 1.7A INSOP24C
Datasheet
BRD1161C-TL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)Power Management (PMIC)Full Half-Bridge (H Bridge) Drivers
Manufacturer Power Integrations
Series BridgeSwitch
Part Status Active
Output Configuration Half Bridge
Applications DC Motors, General Purpose
Interface Analog, Logic, PWM
Load Type Capacitive and Resistive
Technology Power MOSFET
Rds On (Typ) 2.95Ohm LS, 2.95Ohm HS
Current - Output / Channel 1.7A
Voltage - Load 600V
Operating Temperature -40°C ~ 150°C (TJ)
Features Bootstrap Circuit
Fault Protection Current Limiting, Over Temperature, Over Voltage
Mounting Type Surface Mount
Package / Case 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads
Supplier Device Package InSOP-24C
Base Product Number BRD1161
Ultra Librarian 3D Model Ultra Librarian BRD1161C-TL CAD Model
