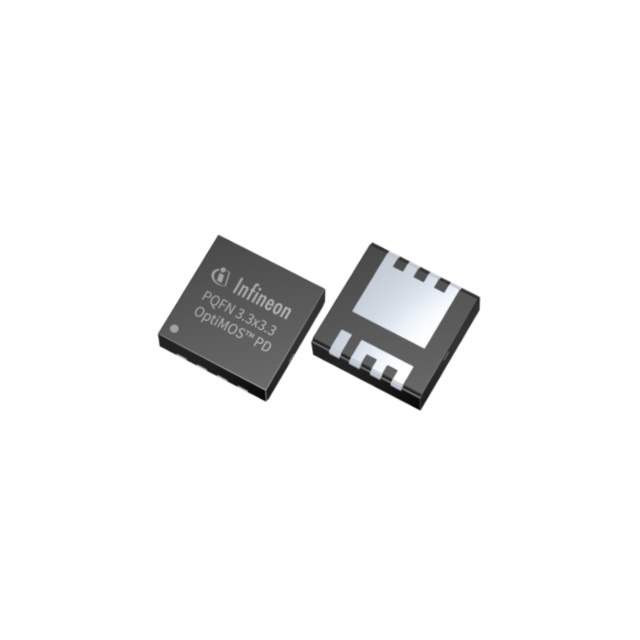

BSZ0905PNSATMA1 Real Image
Same model may have multiple batches, images only for reference.

BSZ0905PNSATMA1

Part No BSZ0905PNSATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 40A TDSON-8 / P-Channel 30 V 40A (Tc) 69W (Ta) Surface Mount PG-TDSON-8
Datasheet
BSZ0905PNSATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series OptiMOS™
Package Tape & Reel
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Rds On (Max) @ Id, Vgs 8.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id 1.9V @ 105µA
Gate Charge (Qg) (Max) @ Vgs 43.2 nC @ 10 V
Vgs (Max) ±25V
Input Capacitance (Ciss) (Max) @ Vds 3190 pF @ 15 V
Power Dissipation (Max) 69W (Ta)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-TDSON-8
Package / Case 8-PowerTDFN
Base Product Number BSZ0905
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 448-BSZ0905PNSATMA1TR,SP005399015,448-BSZ0905PNSATMA1CT,448-BSZ0905PNSATMA1DKR
Standard Package 5,000
Win Source Part Number 971604-BSZ0905PNSATMA1
Ultra Librarian 3D Model Ultra Librarian BSZ0905PNSATMA1 CAD Model

Description

The Infineon Technologies BSZ0905PNSATMA1 is a P-Channel MOSFET transistor designed for use in discrete semiconductor products.

  • Power Rating (Max): 69 W
  • Drain-Source Voltage (Max): 30 V
  • Continuous Drain Current: 40 A @ Tc
  • Rds on: 8.6 mOhm @ 20 A and 10 V
  • Vgs(th): 1.9 V @ 105 μA
  • Package Type: 8-PowerTDFN
  • Supplier Device Package: PG-TDSON-8
  • Gate Charge: 43.2 nC @ 10 V
  • Input Capacitance: 3190 pF @ 15 V
  • Operating Temperature Range: -55°C to 150°C
