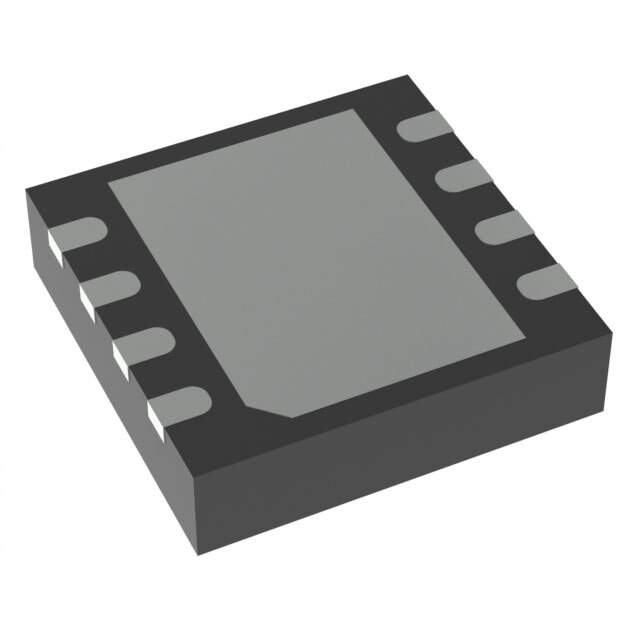

2EDL8024GXUMA1

Name: 2EDL8024GXUMA1
Brand: Infineon Technologies
SKU: 1323546
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2EDL8024GXUMA1
Manufacturer	Infineon Technologies
Catalog	PMIC - Gate Drivers
Description	INT. POWERSTAGE/DRIVER / High-Side and Low-Side Gate Driver IC Non-Inverting PG-VDSON-8-4
Datasheet	2EDL8024GXUMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>Power Management (PMIC)>Gate Drivers
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Driven Configuration	High-Side and Low-Side
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	8V ~ 17V
Current - Peak Output (Source, Sink)	4A, 4A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	90 V
Rise / Fall Time (Typ)	45ns, 45ns
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting	Surface Mount
Case / Package	8-VDFN Exposed Pad
Supplier Device Package	PG-VDSON-8-4
Base Product Number	2EDL8024
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Part Number	448-2EDL8024GXUMA1DKR,448-2EDL8024GXUMA1CT,SP005406443,448-2EDL8024GXUMA1TR
Standard Package	6,000
Win Source Part Number	1323546-2EDL8024GXUMA1
Ultra Librarian 3D Model	Ultra Librarian 2EDL8024GXUMA1 CAD Model

Description

The Infineon Technologies 2EDL8024GXUMA1 is an integrated circuit designed for use in power management (PMIC) gate drivers.

Mounting Type: Surface Mount
Channel Type: Independent
Input Type: Non-Inverting
Standard Package: 6,000
Supplier Device Package: PG-VDSON-8-4
Voltage Supply: 8V ~ 17V
Temperature Range: -40°C ~ 125°C (TJ)
Peak Output Current: 4A and 4A
High-Side Voltage: 90 V
Rise/Fall Time: 45ns
