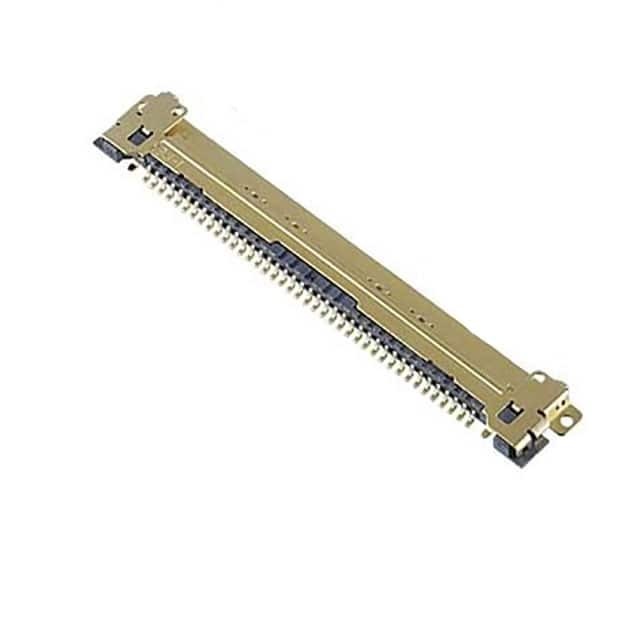

20455-040E-76 I-Pex
Same model may have multiple batches, images only for reference.

20455-040E-76

Part No 20455-040E-76
Manufacturer I-Pex
Catalog Flat Flex Cables (FFC, FPC)
Description CABLINE-VS RECEPTACLE 40P / 40 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr I-PEX
Series CABLINE®-VSF
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.28mm
Height Above Board 0.039" (1.00mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Features EMI Shielded, Solder Retention
Voltage Rating 100V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Housing Color Black
Mating Cycles 30
MSL Level 1 (Unlimited)
Other Names 3508-20455-040E-76TR,3508-20455-040E-76DKR,3508-20455-040E-76CT
Standard Package 5,000
Win Source Part Number 1155256-20455-040E-76
Ultra Librarian 3D Model Ultra Librarian 20455-040E-76 CAD Model

Description

The CABLINE®-VSF FFC/FPC connector is an EMI shielded, solder retention connector with a pitch of 0.020" (0.50mm) and 40 positions, manufactured by I-PEX.

  • Pitch: 0.020" (0.50mm)
  • Number of Positions: 40
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Voltage Rating: 100V
  • Height Above Board: 0.039" (1.00mm)
  • Mounting Style: Surface Mount, Right Angle
  • Packaging: Tape & Reel
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Mating Cycle: 30
  • Temperature Range: -40°C to 85°C
  • Standard Package: 5,000
