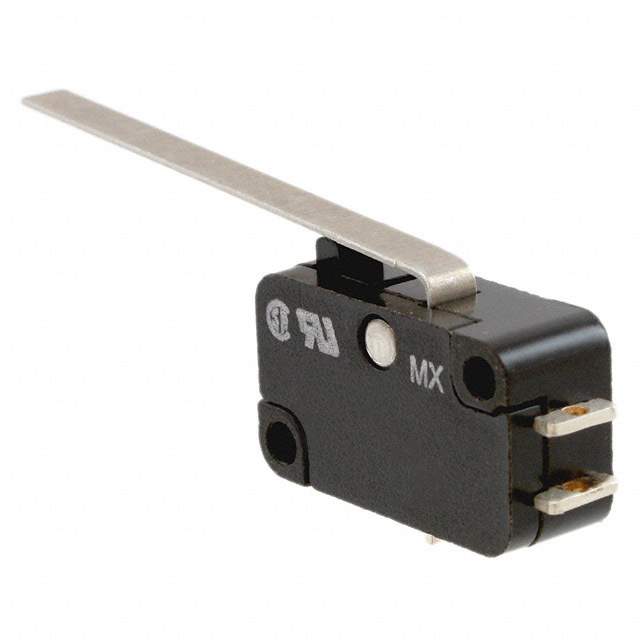

V3L-2436 Real Image
Same model may have multiple batches, images only for reference.

V3L-2436

Part No V3L-2436
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Datasheet
V3L-2436 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series V3L
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Operating Force 198gf
Pretravel 0.200" (5.1mm)
Differential Travel 0.055" (1.4mm)
Overtravel 0.160" (4.06mm)
Operating Position 0.600" (15.2mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 480-5228,V3L2436,V3L-2436-ND
Standard Package 100
Win Source Part Number 1068339-V3L-2436
Ultra Librarian 3D Model Ultra Librarian V3L-2436 CAD Model

Description

The Honeywell V3L series limit switch with solder lug termination style is an SPDT circuit switch with an On-Mom switch function.

  • Actuator Type: Lever, straight
  • Operating Force: 198gf
  • Pretravel: 0.200" (5.1mm)
  • Differential Travel: 0.055" (1.4mm)
  • Overtravel: 0.160" (4.06mm)
  • Operating Position: 0.600" (15.2mm)
  • Mounting: Chassis Mounted
  • Current Rating: 5A (AC)
  • Voltage Rating: 125 V AC
