Same model may have multiple batches, images only for reference.

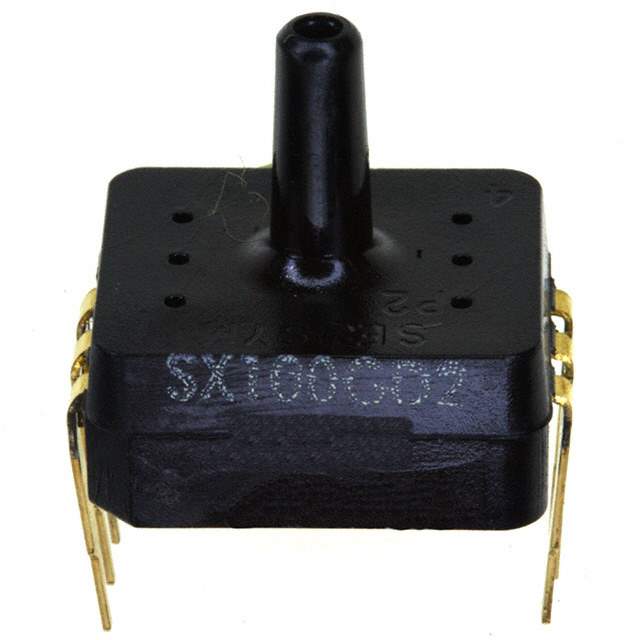

SX100GD2 Real Image
Same model may have multiple batches, images only for reference.

SX100GD2

Part No SX100GD2
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR HI-IMP 100PSIG DIP PKG / Pressure Sensor 100PSI (689.48kPa) Vented Gauge Male - 0.11" (2.67mm) Tube 0 mV ~ 150 mV (5V) 6-DIP Module
Datasheet
SX100GD2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 100PSI (689.48kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 150 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Size Male - 0.11" (2.67mm) Tube
Port Style Barbless
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Supplier Device Package 6-DIP
Other Names 287-1075,287-1075R
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234824-SX100GD2
Ultra Librarian 3D Model Ultra Librarian SX100GD2 CAD Model

Description

The Honeywell pressure sensor is a high-performance device that is ideal for board mount applications.

  • Pressure Type: vented gauge
  • Operating Pressure: 100PSI (689.48kPa)
  • Port Style: barbless, male
  • Port Size: 0.11" (2.67mm) tube
  • Output Type: Wheatstone Bridge
  • Output Range: 0 mV ~ 150 mV (5V)
  • Accuracy: ±0.5%
  • Sensor Package: 6-DIP Module
  • Voltage Supply: 12V
  • Maximum Pressure: 150PSI (1034.21kPa)
  • Operating Temperature: -40°C ~ 85°C
