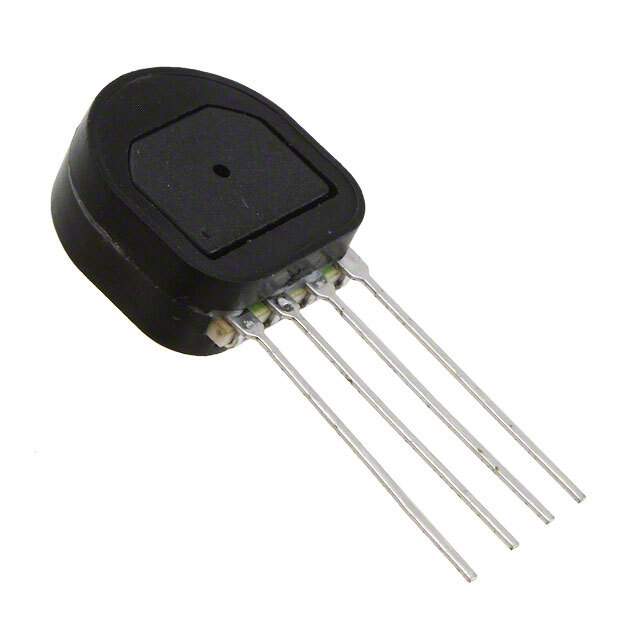

SSCSMNN060PGAA3 Real Image
Same model may have multiple batches, images only for reference.

SSCSMNN060PGAA3

Part No SSCSMNN060PGAA3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS 60PSI GAUGE 3.3V SI / Pressure Sensor 60PSI (413.69kPa) Vented Gauge 0.33 V ~ 2.97 V 4-SIP Module
Datasheet
SSCSMNN060PGAA3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Tube
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 60PSI (413.69kPa)
Output Type Analog Voltage
Output 0.33 V ~ 2.97 V
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 120PSI (827.37kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package 4-SIP
Base Product Number SSCSMNN
Other Names 480-5531,SSCSMNN060PGAA3
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234260-SSCSMNN060PGAA3
Ultra Librarian 3D Model Ultra Librarian SSCSMNN060PGAA3 CAD Model

Description

This pressure sensor from Honeywell Sensing and Productivity Solutions is part of the TruStability® SSC series.

  • Win Source Part Number: 1234260-SSCSMNN060PGAA3
  • Application: Board mount
  • Package: Tube
  • Output Type: Analog voltage
  • Output: 0.33 V to 2.97 V
  • Accuracy: ±0.25%
  • Pressure Type: Vented gauge
  • Operating Pressure: 60PSI (413.69kPa)
  • Maximum Pressure: 120PSI (827.37kPa)
  • Voltage Supply: 3V to 3.6V
  • Package/Case: 4-SIP module
  • HTSUS: 9026.20.4000
