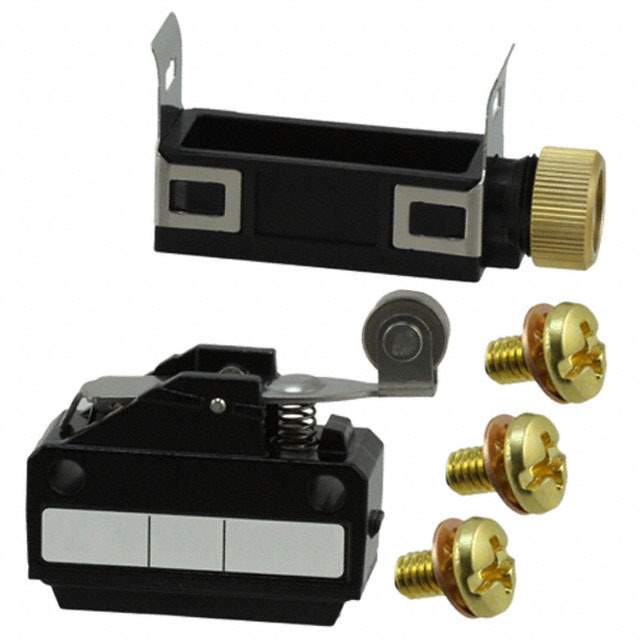

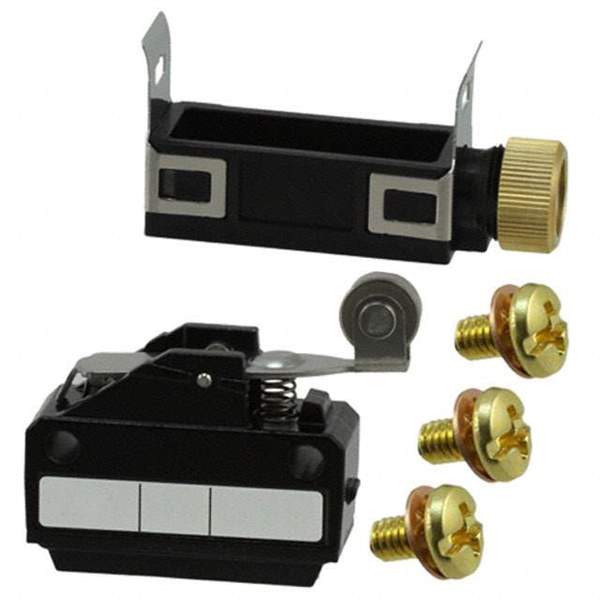

SL1-P Real Image
Same model may have multiple batches, images only for reference.

SL1-P

Part No SL1-P
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Datasheet
SL1-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SL1
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 400gf
Release Force 80gf
Pretravel 0.080" (2.0mm)
Differential Travel 0.012" (0.3mm)
Overtravel 0.158" (4.0mm)
Temperature Range - Operating -10°C ~ 70°C
Operating Position 0.909" (23.1mm)
Base Product Number SL1
Other Names 480-3670,SL1P
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233662-SL1-P
Ultra Librarian 3D Model Ultra Librarian SL1-P CAD Model

Description

The Honeywell Sensing and Productivity Solutions part number 1233662-SL1-P is a limit switch with a voltage rating of 125 VAC and an ingress protection rating of IP67, making it dust tight and waterproof.

  • Voltage Rating: 125 VAC
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Operating Force: 400gf
  • Release Force: 80gf
  • Actuator Type: Lever/Roller
  • Pretravel: 0.080" (2.0mm)
  • Differential Travel: 0.012" (0.3mm)
  • Overtravel: 0.158" (4.0mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -10°C to 70°C
