Same model may have multiple batches, images only for reference.

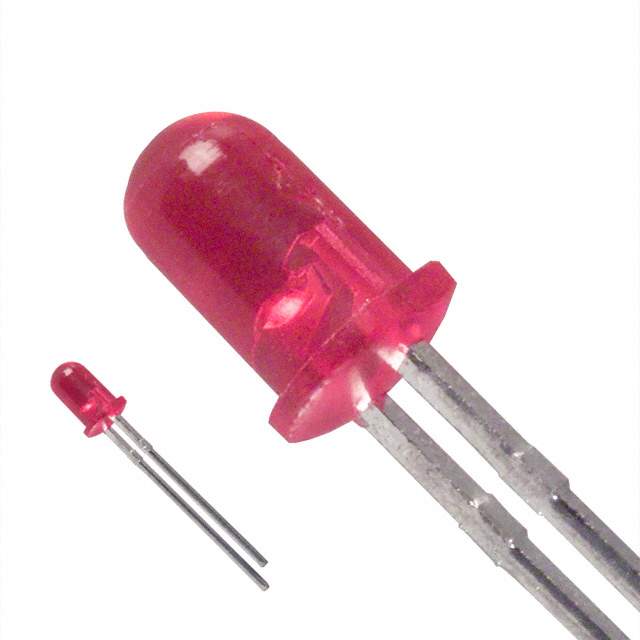

SEP8505-002 Real Image
Same model may have multiple batches, images only for reference.

SEP8505-002

Part No SEP8505-002
Manufacturer Honeywell
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 935NM 50MA RADIAL / Infrared (IR) Emitter 935nm 1.5V 50mA 1mW/cm² @ 20mA 15° Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 50mA
Radiant Intensity (Ie) Min @ If 1mW/cm² @ 20mA
Wavelength 935nm
Voltage - Forward (Vf) (Typ) 1.5V
Viewing Angle 15°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Radial
Other Names 480-1961,480-1961R,SEP8505002,2266-SEP8505-002
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242368-SEP8505-002
Ultra Librarian 3D Model Ultra Librarian SEP8505-002 CAD Model

Description

The SEP8505-002 is an infrared LED emitter from Honeywell Sensing and Productivity Solutions. This LED emitter has a wavelength of 935nm and a viewing angle of 15 degrees.

  • Radiant Intensity: 1mW/cm² @ 20mA
  • Maximum Forward Current: 50mA
  • Package: Radial
  • Standard Package: 100
  • Operating Temperature Range: -40°C to 85°C
  • Ideal for: Use in applications that require infrared light.
