Same model may have multiple batches, images only for reference.

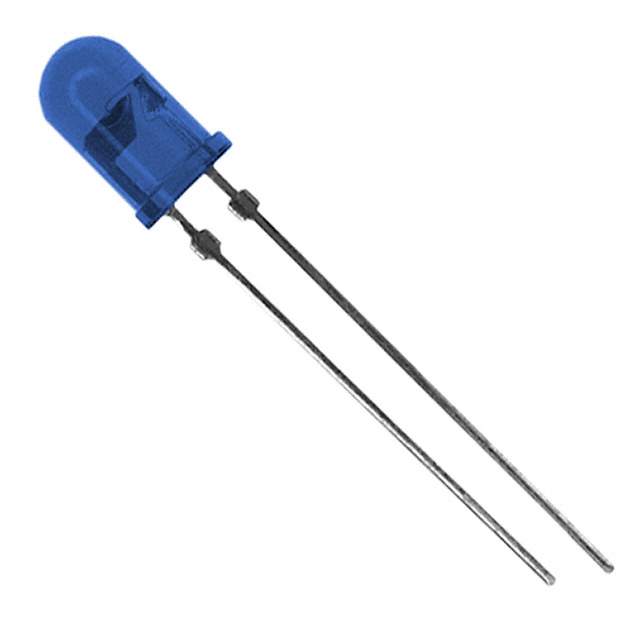

TSAL5300 Real Image
Same model may have multiple batches, images only for reference.

TSAL5300

Part No TSAL5300
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 100MA RADIAL
Datasheet
TSAL5300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 30mW/sr @ 100mA
Wavelength 940nm
Forward Voltage 1.35V
Viewing Angle 44°
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Through Hole
Dimension Radial, 5mm Dia (T 1 3/4)
Win Source Part Number 213519-TSAL5300
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian TSAL5300 CAD Model

Description

The Vishay 213519-TSAL5300 is an infrared (IR) electronic component with a 940nm wavelength.

  • Manufacturer: Vishay
  • Product Name: 213519-TSAL5300
  • Wavelength: 940nm
  • Supply and Demand Status: balance
  • Mounting Type: through-hole mounted type
  • Dimension: 5mm dia radial dimension (T 1 3/4)
  • Radiant Intensity (Ie) min @ If: 30mW/sr @ 100mA
  • Forward Voltage: 1.35V
  • Viewing Angle: 44°
  • Application: various applications, including industrial, communications, and networking.
