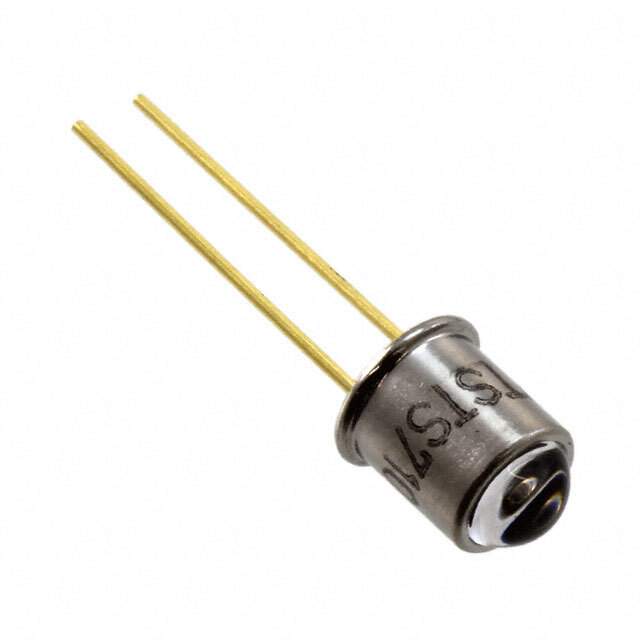

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Bulk
Status Active
Type Infrared (IR)
Continuous forward current- Max 250mA
Radiant Intensity (Ie) Min @ If 10mW/sr @ 100mA
Wavelength 950nm
Forward Voltage 1.3V
Viewing Angle 10°
Orientation Top View
Temperature Range - Operating 100°C (TJ)
Mounting Through Hole
Dimension TO-18-2 Metal Can
Win Source Part Number 213562-TSTS7100
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Sensing & Instrumentation, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian TSTS7100 CAD Model

Description

The Vishay TSTS7100 is an infrared (IR) type optoelectronic component with a viewing angle of 10°.

  • Viewing Angle: 10°
  • Forward Voltage: 1.3V
  • Radiant Intensity (Ie) Min @ If: 10mW/sr @ 100mA
  • Mounting Type: Through-Hole
  • Package: TO-18-2 metal can
  • Continuous Forward Current: 250mA
  • Operating Temperature: 100°C (TJ)
  • Application: Sensing & instrumentation, communications & networking
  • Supply and Demand Status: Limited
  • Packaging: Bulk
