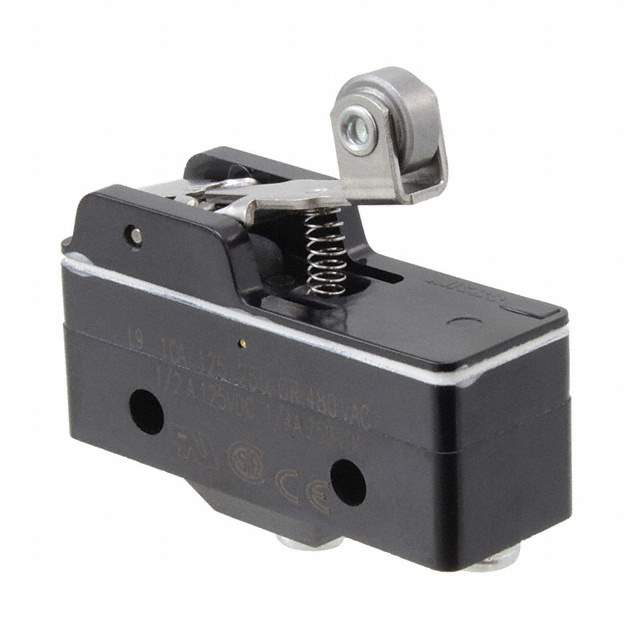

SCN-2209SC Real Image
Same model may have multiple batches, images only for reference.

SCN-2209SC

Part No SCN-2209SC
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 125V / Switch SPDT Chassis Mount
Datasheet
SCN-2209SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series BZ
Package Bulk
Product Status Obsolete
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection Splash Proof
Operating Force 184gf
Release Force 43gf
Differential Travel 0.030" (0.76mm)
Overtravel 0.094" (2.4mm)
Temperature Range - Operating -55°C ~ 85°C
Operating Position 1.188" (30.2mm)
Mechanical Life 20,000,000 Cycles
Other Names 480-4700,BZ-3RW8221555513T-S,BZ-3RW8221555513T-S,SCN2209SC
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233667-SCN-2209SC
Ultra Librarian 3D Model Ultra Librarian SCN-2209SC CAD Model

Description

The Honeywell BZ series is known for its high-quality limit switches.

  • Model: SCN-2209SC
  • Mounting Type: Chassis Mount
  • Termination Style: Screw Terminal
  • Ingress Protection: Splash-Proof
  • Voltage Rating: 125 V AC/DC
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever and Roller
  • Operating Force: 184gf
  • Mechanical Life: 20,000,000 Cycles
  • Release Force: 43gf
  • Differential Travel: 0.030" (0.76mm)
  • Overtravel: 0.094" (2.4mm)
  • Operating Position: 1.188" (30.2mm)
  • Operating Temperature: -55°C ~ 85°C
