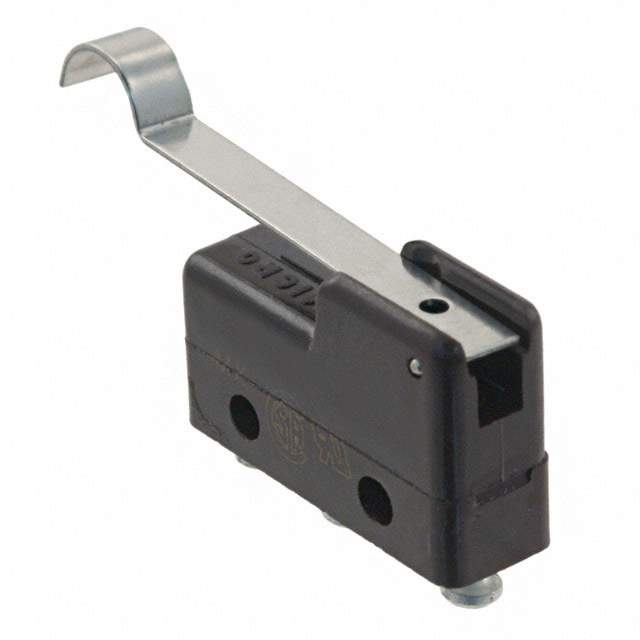

311SM705-T Real Image
Same model may have multiple batches, images only for reference.

311SM705-T

Part No 311SM705-T
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 4A 250V / Switch SPDT Chassis Mount
Datasheet
311SM705-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SM
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 4A (AC), 5A (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Turret
Operating Force 12gf
Release Force 2.039gfm
Pretravel 0.120" (3.0mm)
Differential Travel 0.015" (0.38mm)
Overtravel 0.026" (0.7mm)
Temperature Range - Operating -55°C ~ 125°C
Operating Position 0.455" (11.6mm)
Mechanical Life 10,000,000 Cycles
Base Product Number 311SM
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Other Names 311SM705T,480-3021
Standard Package 100
Win Source Part Number 1120939-311SM705-T
Ultra Librarian 3D Model Ultra Librarian 311SM705-T CAD Model

Description

The Honeywell Sensing and Productivity Solutions SM705-T is a limit switch that operates on an SPDT circuit with an on-mom switch function.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating: 250V AC, 30V DC
  • Current Rating: 4A (AC), 5A (DC)
  • Mechanical Life: 10,000,000 cycles
  • Operating Force: 12gf
  • Mounting Type: Chassis Mount
  • Temperature Range: -55°C to 125°C
  • Actuator Type: Lever, Simulated Roller
  • Package: Bulk
