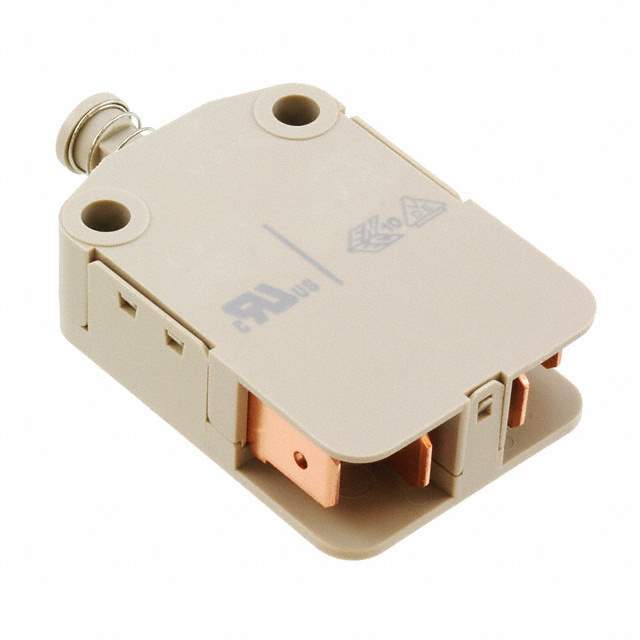

AV13653F

Part No AV13653F
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT DPST-NO 10A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electric Works
Packaging Bulk
Circuit DPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 125V
Actuator Type Round (Pin Plunger)
Mounting Style Chassis Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP40
Operating Force 800gf
Overtravel 0.083" (2.1mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.500" (12.7mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 752000-AV13653F
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AV13653F CAD Model

Description

The Panasonic Electric Works DPST-NO Switch is a high-quality switch.

  • Termination Style: 0.250 inches (6.3mm)
  • Mounting Style: Chassis mount
  • Ingress Protection Rating: IP40
  • Voltage Rating: 125V AC
  • Circuit: DPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: round (pin plunger)
  • Electrical Life: 100,000 cycles
  • Operating Force: 800gf
  • Mechanical Life: 1,000,000 cycles
  • Overtravel: 0.083 inches (2.1mm)
  • Operating Position: 0.500 inches (12.7mm)
  • Operating Temperature: -25°C to 85°C
