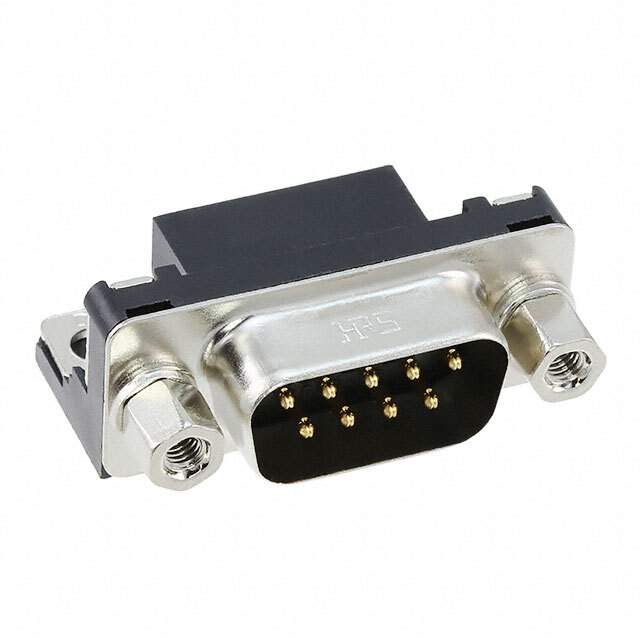

RDED-9PA-LNA(55) Real Image
Same model may have multiple batches, images only for reference.

RDED-9PA-LNA(55)

Part No RDED-9PA-LNA(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 9POS R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series RD*D
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 85°C
Base Product Number RDED
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *RDED-9PA-LNA(55)-ND,H122891,-RDED-9PA-LNA(55),*RDED-9PA-LNA(55),211-0486-4-55
Standard Package 63
Win Source Part Number 1056823-RDED-9PA-LNA(55)
Ultra Librarian 3D Model Ultra Librarian RDED-9PA-LNA(55) CAD Model

Description

The RDED-9PA-LNA(55) is a D-sub connector plug with 9 positions and male pins.

  • Manufacturer: Hirose Electric Co Ltd
  • Positions: 9
  • Gender: Male
  • Voltage Rating: 350V
  • Current Rating: 3A
  • Package: Tray
  • Flange Feature: Female Screwlock (M2.6)
  • Mounting Options: Panel Mount, Through Hole, Right Angle
