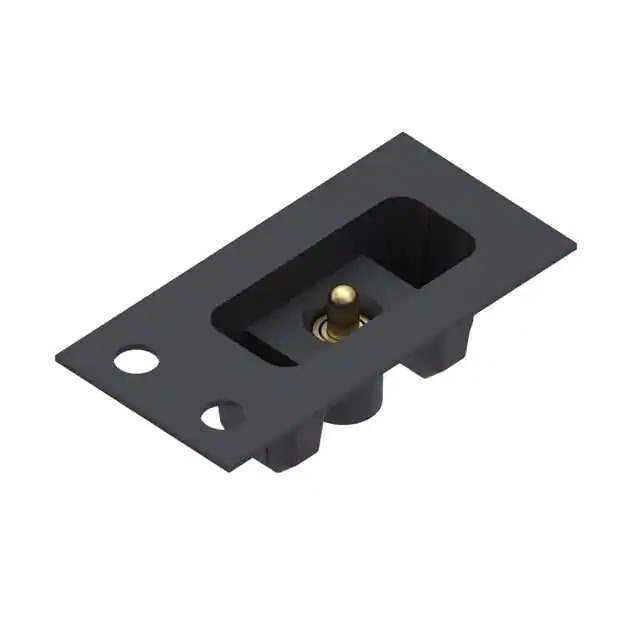

0910-1-57-20-75-14-11-0 Real Image
Same model may have multiple batches, images only for reference.

0910-1-57-20-75-14-11-0

Part No 0910-1-57-20-75-14-11-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED SMD GOLD / Contact Spring Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Contacts, Spring Loaded (Pogo Pins), and Pressure
Mfr Mill-Max Manufacturing Corp.
Series 910
Package Tape & Reel
Product Status Active
Contact Type Sleeve & Plunger (Pogo Pins)
Mounting Type Surface Mount
Maximum Working Height 0.177" (4.50mm)
Recommended Working Height 0.150" (3.80mm)
Minimum Working Height 0.122" (3.10mm)
Pad Layout Dimension Circular - 0.072" (1.83mm)
Operating Force - Initial 10gf
Operating Force - Mid Compression 60gf
Plunger Size 0.042" (1.07mm) Dia
Mating Cycles 1000000
Contact Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Current Rating (Amps) 5.2A
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 0910-1
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853443-0910-1-57-20-75-14-11-0
Ultra Librarian 3D Model Ultra Librarian 0910-1-57-20-75-14-11-0 CAD Model

Description

The 853443-0910-1-57-20-75-14-11-0 is a sleeve and plunger type contact used in connectors manufactured by Mill-Max Manufacturing Corp.

  • Type: Spring-Loaded Pogo Pins
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Contact Finish Thickness: 20.0µin (0.51µm)
  • Current Rating: 5.2A
  • Recommended Working Height: 0.150" (3.80mm)
  • Minimum Working Height: 0.122" (3.10mm)
  • Contact Material: Brass Alloy
  • Pad Layout Dimension: 0.072" (1.83mm)
  • Operating Force: 10gf
  • Temperature Range: -55°C to 125°C
  • Series: 910
  • Standard Package: 1,500 pcs
  • Mating Cycle: 1,000,000
