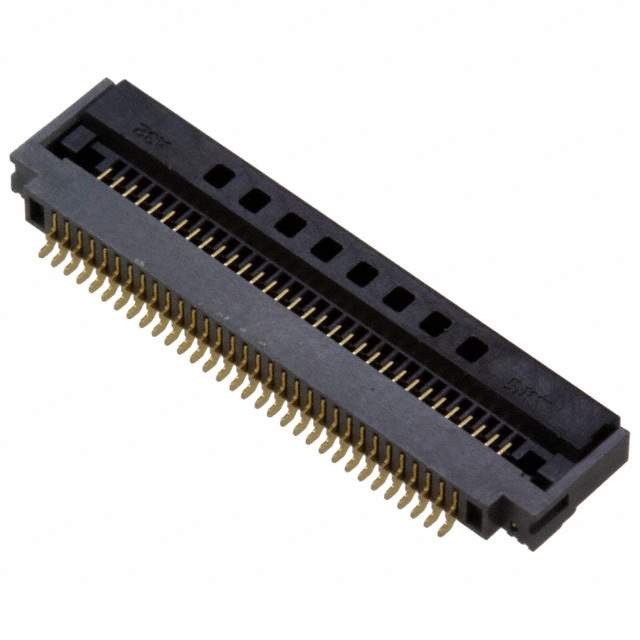

FH52-32S-0.5SH Real Image
Same model may have multiple batches, images only for reference.

FH52-32S-0.5SH

Part No FH52-32S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Datasheet
FH52-32S-0.5SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH52
Package Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 32
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.25µin (0.03µm)
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Base Product Number FH52
Other Names 580-3325-0-00,FH52-32S-0.5SHCT,FH52-32S-0.5SH,FH52-32S-0.5SHTR
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294097-FH52-32S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FH52-32S-0.5SH CAD Model

Description

The FH52 series connector is a FFC/FPC connector with a flip lock mechanism.

  • Series: FH52
  • Type: FFC/FPC Connector
  • Mechanism: Flip Lock
  • Pitch: 0.020” (0.50mm)
  • Positions: 32
  • Height Above Board: 0.079” (2.00mm)
  • Temperature Range: -40°C to 105°C
  • Current Rating: 0.5A
  • Voltage Rating: 30V
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Actuator Material: Liquid Crystal Polymer (LCP)
  • Halogen-Free: Yes
  • Housing Color: Gray
  • Actuator Color: Black
  • Mating Cycle: 20
  • Packaging: Tape & Reel (TR) and Cut Tape (CT)
