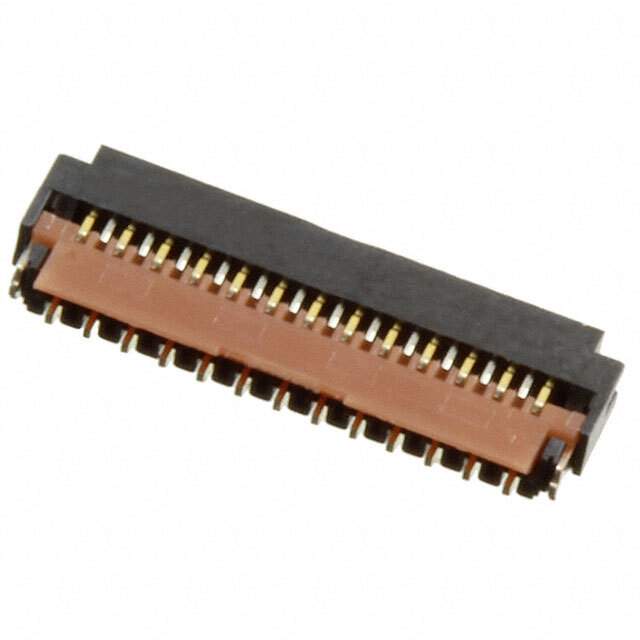

XF3Z-2555-31B

Name: XF3Z-2555-31B
Brand: Omron
SKU: 1105826
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XF3Z-2555-31B
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	FPC CONN 25POS .3MM SMT / 25 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet	XF3Z-2555-31B Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Omron Electronics Inc-EMC Div
Series	XF3Z
Package	Tape & Reel
Product Status	Obsolete
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	25
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Rotary Lock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Polyamide (PA), Nylon, Halogen Free
Features	Solder Retention
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.2A
Contact Finish Thickness	Flash
Housing Color	Black
Actuator Color	Brown
Mating Cycles	20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	Z5460CT,2266-XF3Z-2555-31B,XF3Z255531B,Z5460TR,Z5460DKR,XF3Z-2555-31B BY OMZ,XF3Z255531BBYOMZ
Standard Package	3,000
Win Source Part Number	1105826-XF3Z-2555-31B
Ultra Librarian 3D Model	Ultra Librarian XF3Z-2555-31B CAD Model

Description

The Omron XF3Z-2555-31B is a 25 position FFC, FPC (Flat Flexible) Connector with a pitch of 0.012” (0.30mm).

Positions: 25
Pitch: 0.012” (0.30mm)
Solder Retention: Yes
Contact Finish: Gold with a flash contact finish thickness
Material: Copper alloy
Voltage Rating: 50V
Height Above Board: 0.039” (1.00mm)
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
FFC, FCB Thickness: 0.20mm
Locking Feature: Rotary Lock
Cable End Type: Tapered
Flammability Rated: UL94 V-0
Housing Color: Black
Mounting: Surface Mount, Right Angle
Operating Temperature Range: -55°C to 85°C
