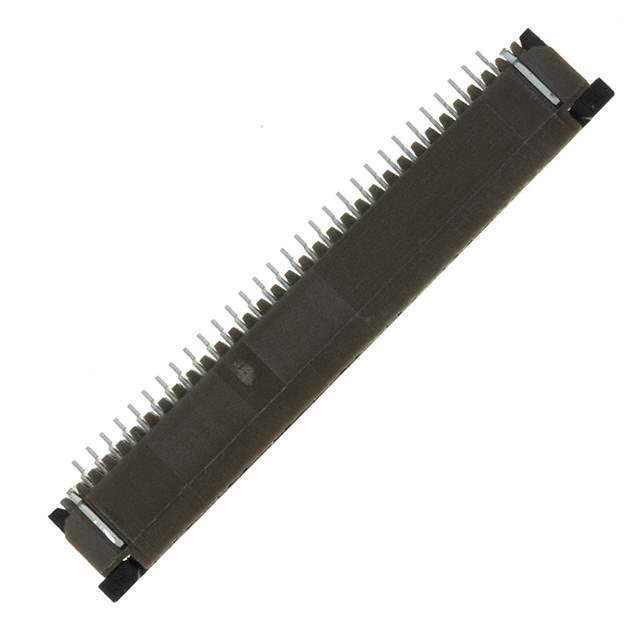

SFW30R-2STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW30R-2STE1LF

Part No SFW30R-2STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 30POS 1MM R/A / 30 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFW-R
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 30
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.106" (2.70mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Actuator Color Black
Mating Cycles 20
Base Product Number SFW30R
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 2266-SFW30R-2STE1LF,609-1927-6,609-1927-2,609-1927-1,SFW30R2STE1LF
Standard Package 2,000
Win Source Part Number 1092513-SFW30R-2STE1LF
Ultra Librarian 3D Model Ultra Librarian SFW30R-2STE1LF CAD Model

Description

The Amphenol FFC/FPC Connector is a 30-position electronic component with a pitch of 0.039" (1.00mm).

  • Positions: 30
  • Pitch: 0.039" (1.00mm)
  • Insertion Force: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Voltage Rating: 100V
  • Contact Finish: Tin
  • Contact Material: Phosphor Bronze
  • Height Above Board: 0.106" (2.70mm)
  • Flat Flex Type: FFC/FPC
  • Connector/Contact Type: Contacts, Top
  • FFC/FCB Thickness: 0.30mm
  • Locking Feature: Slide Lock
  • Cable End Type: Tapered
  • Housing Material: Polyphenylene Sulfide (PPS), Glass-Filled
  • Actuator Material: Polyphenylene Sulfide (PPS), Glass-Filled
  • Housing Color: Brown
  • Actuator Color: Black
  • RoHS Compliant: Yes
  • Temperature Range: -55°C to 105°C
  • Manufacturer: Amphenol
