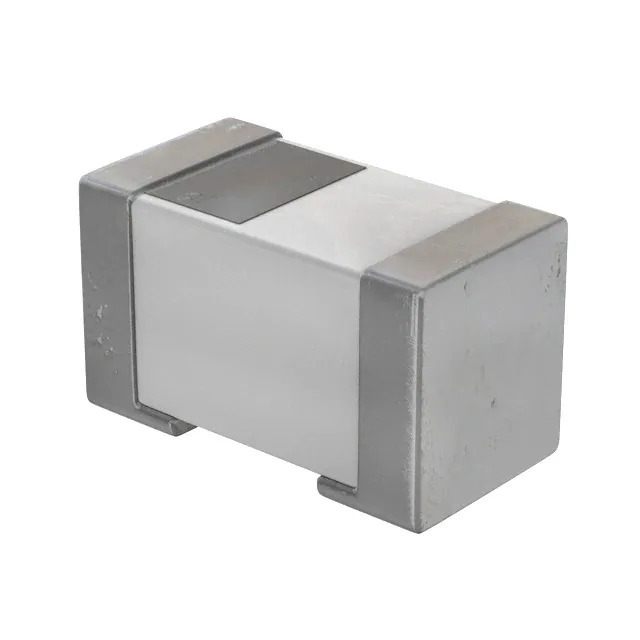

The TDK Corporation MHQ-P series inductor is a fixed inductor with a temperature range of -55°C to 125°C. It is a multilayer inductor with a size of 0402 (1005 Metric) and a package dimension of 0.039" L x 0.024" W (1.00mm x 0.60mm). The inductor has an inductance of 15 nH and a current rating of 400 mA. The MHQ-P series inductor is from TDK Corporation.

• Temperature Range: -55°C to 125°C
• Style: Multilayer
• Size: 0402 (1005 Metric)
• Dimensions: 0.039" L x 0.024" W (1.00mm x 0.60mm)
• Inductance: 15 nH
• Current Rating: 400 mA
• Mounting Type: Surface Mount
• Packaging: Tape & Reel
• Material: Ceramic, Non-Magnetic
• Shielding: Unshielded
• DC Resistance: 280mOhm Max
• Q Value: 23 @ 250MHz
• Self-Resonant Frequency: 2.3GHz
• REACH Unaffected: Yes
