Same model may have multiple batches, images only for reference.

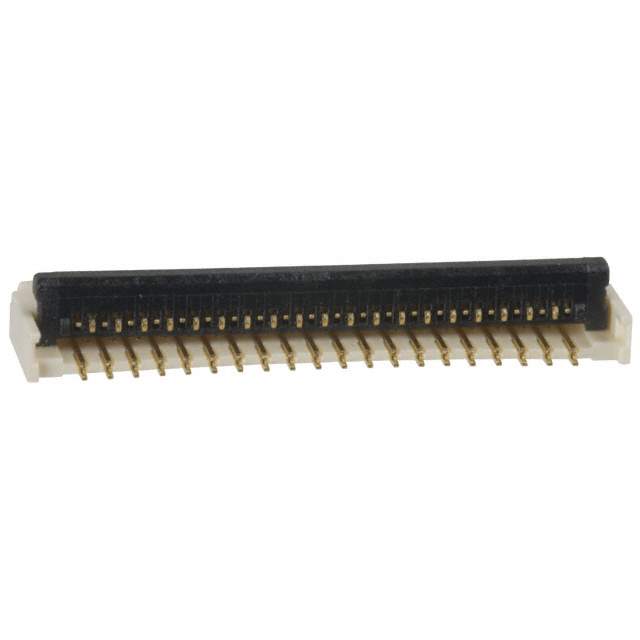

10017251-392240ELF Real Image
Same model may have multiple batches, images only for reference.

10017251-392240ELF

Part No 10017251-392240ELF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 39POS 0.30MM R/A / 39 Position FFC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
10017251-392240ELF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFYL-U
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Flat Flex Type FFC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 39
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.047" (1.20mm)
Locking Feature Flip Lock
Cable End Type Notched
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Thermoplastic, Glass Filled
Actuator Material Thermoplastic
Features Low Insertion Force (LIF)
Voltage Rating 200V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Housing Color White
Actuator Color Black
Mating Cycles 10
Base Product Number 10017251
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 10017251392240ELF,609-1230-1,609-1230-2
Standard Package 4,500
Win Source Part Number 1143234-10017251-392240ELF
Ultra Librarian 3D Model Ultra Librarian 10017251-392240ELF CAD Model

Description

The AMPHENOL 1143234-10017251-392240ELF is an SFYL-U series FFC, FPC (Flat Flexible) connector.

  • Positions: 39
  • Pitch: 0.012" (0.30mm)
  • Features: Low Insertion Force (LIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Packaging: Tape & Reel (TR)
  • Standard Package: 4,500
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -25°C ~ 85°C
  • HTSUS: 8536.69.4051
