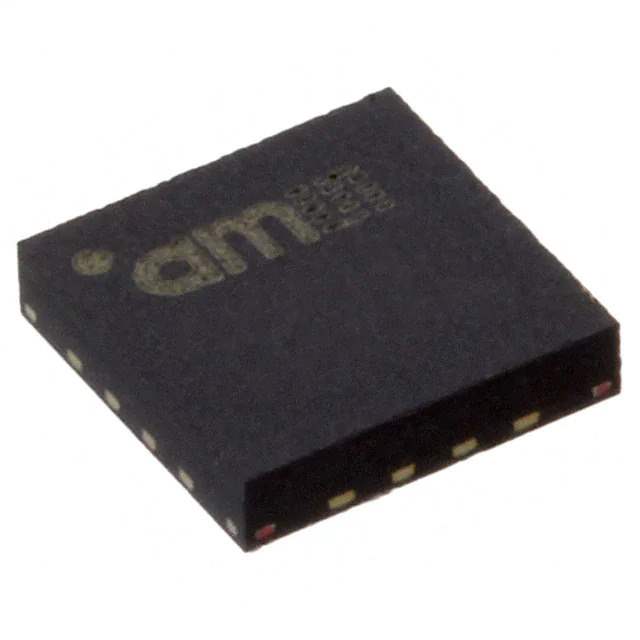

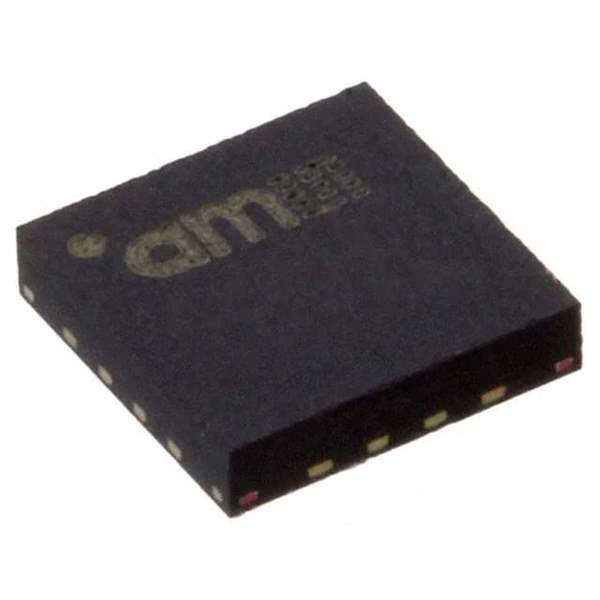

AS5055A-BQFM Real Image
Same model may have multiple batches, images only for reference.

AS5055A-BQFM

Part No AS5055A-BQFM
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE 360DEG SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Position Sensors - Angle, Linear Position Measuring
Mfr OSRAM Opto Semiconductors Inc.
Package Tape & Reel
Product Status Active
For Measuring Angle
Technology Hall Effect
Rotation Angle - Electrical, Mechanical 0° ~ 360°, Continuous
Output SPI
Actuator Type External Magnet, Not Included
Linearity ±1.41°
Voltage - Supply 3V ~ 3.6V
Mounting Type Surface Mount
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 85°C
Package / Case 16-VQFN Exposed Pad
Supplier Device Package 16-QFN (4x4)
Base Product Number AS5055
Standard Package 500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 844902-AS5055A-BQFM
Ultra Librarian 3D Model Ultra Librarian AS5055A-BQFM CAD Model

Description

The AS5055A-BQFM is a Hall Effect sensor designed for angle and linear position measuring in electronic components.

  • Termination Style: Surface Mount
  • Package: 16-VQFN Exposed Pad
  • Voltage Supply: 3V to 3.6V
  • Temperature Range: -40°C to 85°C
  • Rotation Angle: 0° to 360°
  • Linearity: ±1.41°
  • Output: SPI
  • Actuation: External Magnet
