Same model may have multiple batches, images only for reference.

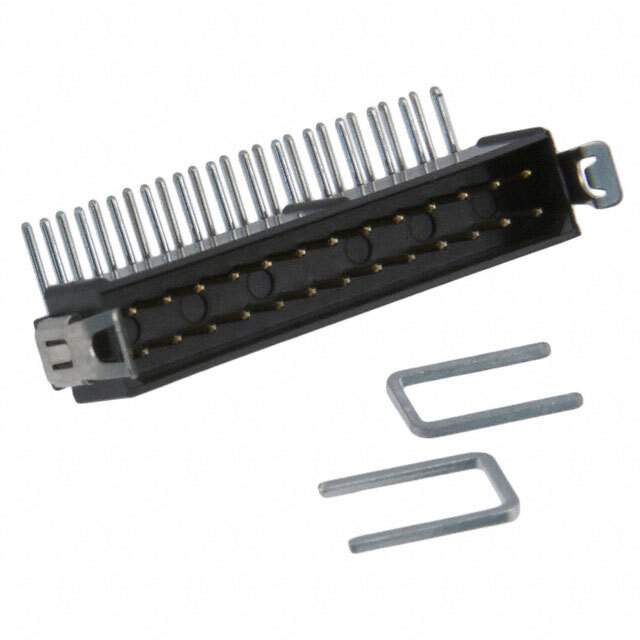

M80-8512642 Real Image
Same model may have multiple batches, images only for reference.

M80-8512642

Part No M80-8512642
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 26POS 2MM / Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm)
Datasheet
M80-8512642 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Harwin Inc.
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.235" (5.97mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 29.5µin (0.75µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Features Strain Relief Clips
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.2A
Voltage Rating 800V
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number M80-851
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 952-1136-5,M808512642
Standard Package 8
Win Source Part Number 1332363-M80-8512642
Ultra Librarian 3D Model Ultra Librarian M80-8512642 CAD Model

Description

This Harwin Inc. header connector is designed for board-to-board or cable applications.

  • Positions: 26
  • Rows: 2
  • Pitch: 0.079 inches
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold (29.5µin)
  • Contact Length (Post): 0.118 inches
  • Insulation Height: 0.235 inches
  • Voltage: 800V
  • Current: 2.2A
  • Termination: Solder
  • Fastening: Latch Lock
  • Insulation Material: Polyphenylene Sulfide (PPS), Glass-Filled
  • Flammability: UL94 V-0
  • Insulation Color: Black
  • Shrouding: 4 Walls
  • Row Spacing: 0.079 inches
  • Temperature Range: -55°C to 125°C
  • ROHS3 Compliant: Yes
