Same model may have multiple batches, images only for reference.

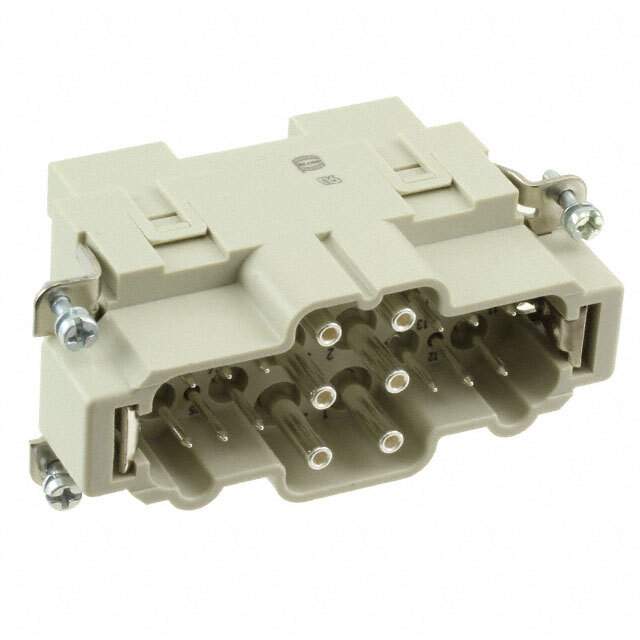

09380182602 Real Image
Same model may have multiple batches, images only for reference.

09380182602

Part No 09380182602
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description INSERT MALE 6+12POS+1GND SCREW / Male Insert Gray 6+12+Ground Position Screw
Datasheet
09380182602 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Inserts, Modules
Mfr HARTING
Series Han-Com®
Package Bulk
Connector Type Insert
Gender Male
Number of Positions 6+12+Ground
Size 16B
Termination Style Screw
Temperature Range - Operating -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Contact Material Copper Alloy
Contact Finish Silver
Material Flammability Rating UL94 V-0
Base Product Number 09380182
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1342136-09380182602
Ultra Librarian 3D Model Ultra Librarian 09380182602 CAD Model

Description

The HARTING 09380182602 is a 16B size Han-Com® series male insert heavy-duty connector module.

  • Series: Han-Com®
  • Number of Positions: 6+12+Ground
  • Termination Style: Screw
  • Housing Material: Polycarbonate (PC)
  • Material Flammability Rating: UL94 V-0
  • Contact Material: Copper Alloy
  • Contact Finish: Silver
  • Operating Temperature: -40°C to 125°C
