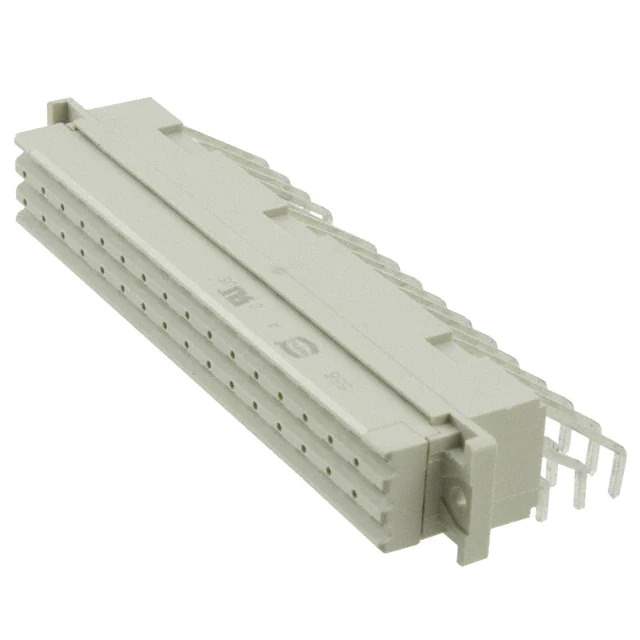

09062486836 Real Image
Same model may have multiple batches, images only for reference.

09062486836

Part No 09062486836
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB RA GOLD / 48 (Power) Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
Datasheet
09062486836 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 48 (Power)
Number of Positions Loaded All
Pitch 0.200" (5.08mm)
Number of Rows 3
Style F
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904783-09062486836
Ultra Librarian 3D Model Ultra Librarian 09062486836 CAD Model

Description

The 904783-09062486836 is a DIN 41612 backplane connector manufactured by HARTING.

  • Positions: 48
  • Application: Power
  • Pitch: 0.200" (5.08mm)
  • Connector Type: Receptacle
  • Gender: Female
  • Contact Type: Receptacles
  • Positions Loaded: All
  • Rows: 3
  • Termination Method: Soldering
  • Contact Finish: Gold
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Mounting Type: Through Hole, Right Angle
  • Product Status: Active
