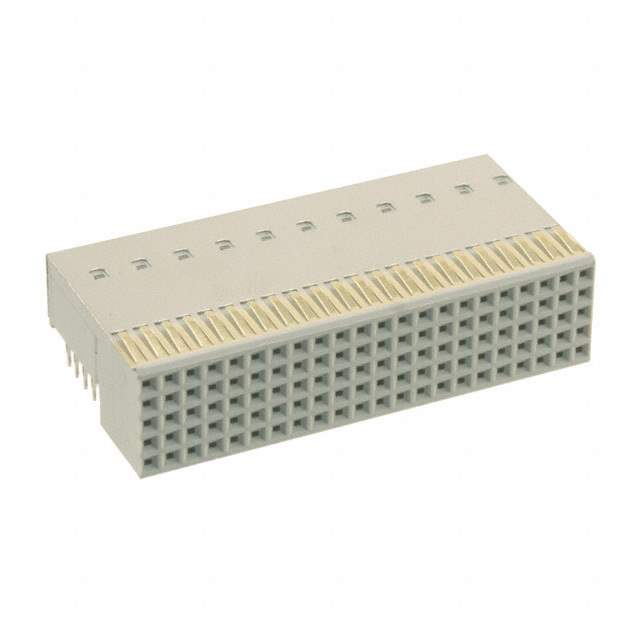

17241102102 Real Image
Same model may have multiple batches, images only for reference.

17241102102

Part No 17241102102
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN RECEPT 132POS 2MM PRESS-FIT
Datasheet
17241102102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Hard Metric, Standard
Mfr HARTING
Series har-bus® HM
Package Tube
Product Status Active
Connector Type Receptacle, Female Sockets
Connector Style B 22
Number of Positions 132 (110 + 22 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5 + 1
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Connector Usage CompactPCI J2/J5
Contact Finish Gold
Current Rating (Amps) 1 A
Temperature Range - Operating -55°C ~ 125°C
Features Upper Shield
Standard Package 11 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854105-17241102102
Ultra Librarian 3D Model Ultra Librarian 17241102102 CAD Model

Description

The 854105-17241102102 is a backplane connector from the har-bus® HM series.

  • Number of Positions: 132 (110 Signal, 22 Ground)
  • Pitch: 0.079" (2.00mm)
  • Shield: Upper Shield
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Package: Tube
  • Standard Package Quantity: 11 Pieces
  • Application: CompactPCI J2/J5
  • Operating Temperature: -55°C to 125°C
  • Manufacturer: HARTING
  • Product Status: Active
