Same model may have multiple batches, images only for reference.

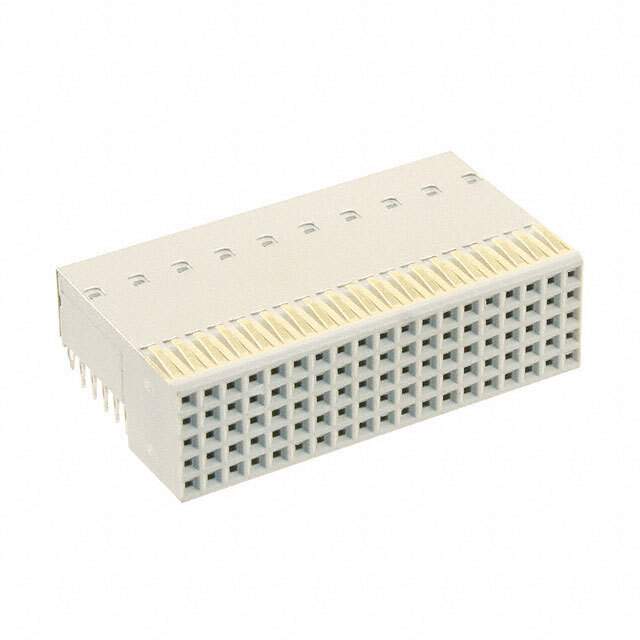

17250952102 Real Image
Same model may have multiple batches, images only for reference.

17250952102

Part No 17250952102
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN RECEPT 95POS 2MM PRESS-FIT
Datasheet
17250952102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Hard Metric, Standard
Mfr HARTING
Series har-bus® HM
Package Tube
Product Status Active
Connector Type Receptacle, Female Sockets
Connector Style B 19
Number of Positions 95
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Connector Usage CompactPCI J3, VME PO
Contact Finish Gold
Current Rating (Amps) 1 A
Temperature Range - Operating -55°C ~ 125°C
Features Upper Shield
Standard Package 13 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854266-17250952102
Ultra Librarian 3D Model Ultra Librarian 17250952102 CAD Model

Description

The har-bus® HM Backplane Connector is a high-quality electronic component designed for use in compactPCI and VME PO applications.

  • Pitch: 0.079" (2.00mm)
  • Positions: 95
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Loading: All positions
  • Shield: Upper
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Package: Tube (13 pieces)
  • Mounting Type: Through Hole, Right Angle
  • Product Status: Active
