Same model may have multiple batches, images only for reference.

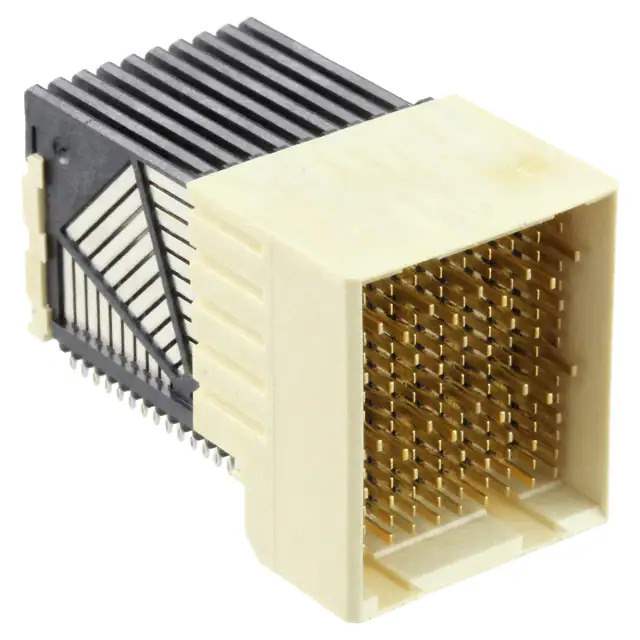

10025613-101LF Real Image
Same model may have multiple batches, images only for reference.

10025613-101LF

Part No 10025613-101LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN HDR HI SPEED 150POS EDGE MT / 150 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural High Speed
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Amphenol
Series Airmax VS®
Package Bulk
Product Status Active
Connector Usage Daughtercard
Connector Type Header, Male Pins
Connector Style High Speed
Number of Positions 150
Number of Positions Loaded All
Pitch 0.055" (1.40mm)
Number of Rows 15
Number of Columns 10
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Natural
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 85°C
Base Product Number 10025613
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853548-10025613-101LF
Ultra Librarian 3D Model Ultra Librarian 10025613-101LF CAD Model

Description

The 853548-10025613-101LF is a specialized backplane connector from the Airmax VS® series by Amphenol.

  • Positions: 150
  • Pitch: 0.055 inches (1.40mm)
  • Rows: 15
  • Columns: 10
  • Termination Method: Press-fit
  • Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
  • Usage: Daughtercard
  • Mounting: Board edge, through-hole, and right-angle
  • Operating Temperature Range: -55°C to 85°C
  • Flammability Rating: UL94 V-0
  • Packaging: Bulk
  • Standard Package: 25 pieces
  • Features: High-speed capabilities
