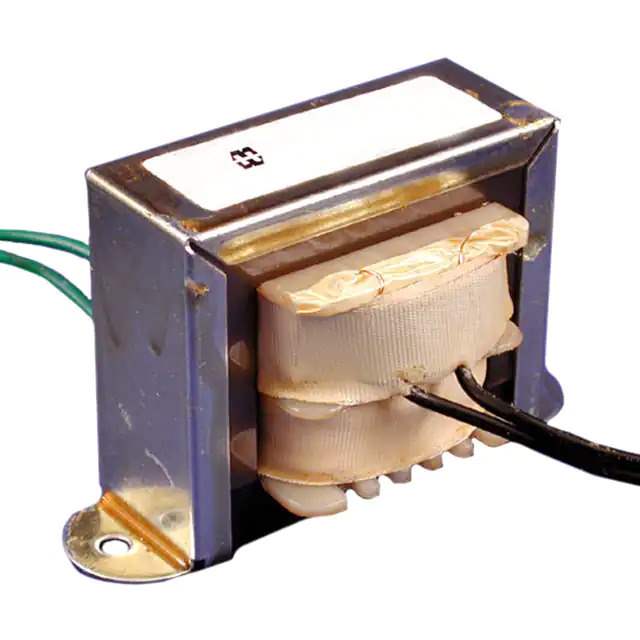

166J12B Real Image
Same model may have multiple batches, images only for reference.

166J12B

Part No 166J12B
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED 12.6VA CHAS
Datasheet
166J12B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr Hammond Manufacturing
Series 166
Package Bulk
Product Status Active
Type Laminated Core
Voltage - Primary 117V
Voltage - Secondary (Full Load) 12.6V
Current - Output (Max) 1A
Primary Winding(s) Single
Secondary Winding(s) Single
Center Tap Yes
Power - Max 12.6VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 82.55mm L x 44.45mm W
Height - Seated (Max) 50.80mm
Voltage - Isolation 2000Vrms
Weight 0.4 lb (181.44 g)
Base Product Number 166J12
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 873669-166J12B
Ultra Librarian 3D Model Ultra Librarian 166J12B CAD Model

Description

The 873669-166J12B is a power transformer from Hammond Manufacturing.

  • Series: 166
  • Core Type: Laminated Core
  • Termination: Wire Leads
  • Package: Bulk
  • Size: 82.55mm length x 44.45mm width
  • Height: 50.80mm seated
  • Max Power: 12.6VA
  • Weight: 0.4 lb (181.44 g)
  • Isolation Voltage: 2000Vrms
  • Primary Voltage: 117V
  • Output Current: 1A maximum
  • Secondary Voltage: 12.6V @ full load
  • Primary Windings: Single
  • Secondary Windings: Single, Center Tap
  • Mounting Type: Chassis Mount
  • ECCN: EAR99
  • Status: Active
  • REACH: Unaffected
