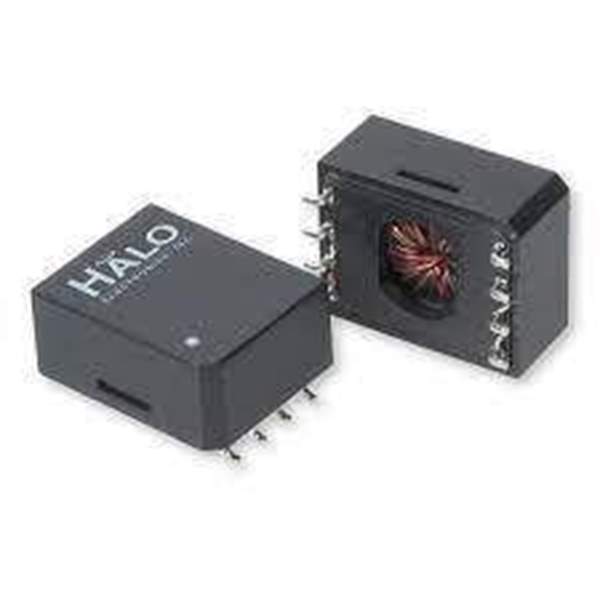

TGM-H240V8LF HALO Electronics
Same model may have multiple batches, images only for reference.

TGM-H240V8LF

Part No TGM-H240V8LF
Manufacturer Halo Electronics Inc
Catalog Pulse Transformers
Description Pulse Transformers ISO MOD SMD GullWing For MAX13253 1A Drv
Datasheet
TGM-H240V8LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308474-TGM-H240V8LF
Manufacturer HALO Electronics
Category Pulse Transformers
Tuning Ratio 1:1:1.3:1.3
Inductance 780 uH
Mounting Style SMD/SMT
Length 14.99 mm
Width 12.07 mm
Height 8.64 mm
Isolation Voltage 1.5 kV
Operating Temperature (Max) + 85 C
Ultra Librarian 3D Model Ultra Librarian TGM-H240V8LF CAD Model

Description

  • The TGM-H2xxV8LF and TGMR-H5xxV8LF series of transformers have been developed specifically for the Maxim MAX13253, low EMI, push-pull driver. These high efficiency, extended temp range transformers have been designed for up to 1A input.
  • UL60950, EN60950 and DEMKO recognized.
  • Tested and approved by Maxim when used with the MAX13253.
  • Operating Temp: -40 to +85°C
