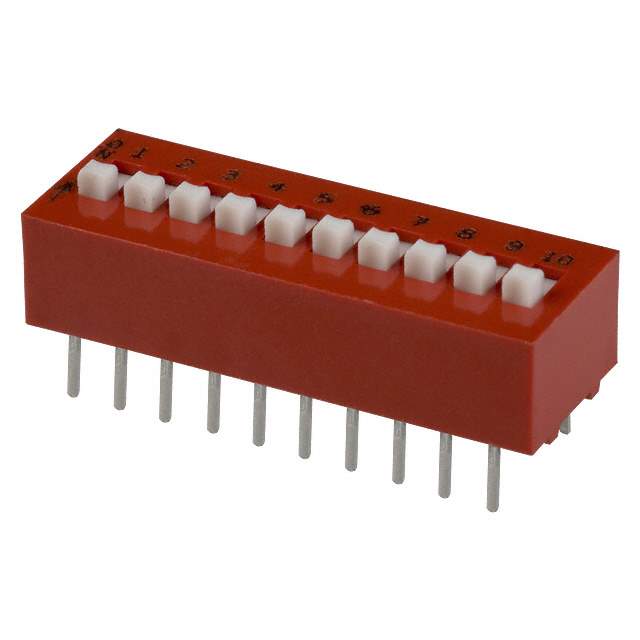

78B10T Real Image
Same model may have multiple batches, images only for reference.

78B10T

Part No 78B10T
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description Thru-Hole DIP Switches | SWITCH SLIDE DIP SPST 150MA 30V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.315" (8.00mm)
Mounting Style Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 1.080" (27.43mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Manufacturer Pack Quantity 9
MSL Level 1 (Unlimited)
Win Source Part Number 1133706-78B10T
Manufacturer Homepage www.grayhill.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 78B10T CAD Model

Description

Grayhill Inc. 1133706-78B10T is a switch with ten positions and a pitch of 0.100 inches.

  • Positions: Ten
  • Pitch: 0.100 inches
  • Termination Style: PC Pin
  • Mounting: Through-hole
  • Voltage Rating: 30VDC
  • Contact Finish: Gold
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Packaging: Tube
  • Standard Package: 9
  • Height Above Board: 0.315 inches
  • Length: 1.080 inches
  • Washable: No
  • Temperature Range: -40°C to 85°C
  • Current Rating: 150mA
