Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPDT
Number of Positions 2
Current Rating 100mA
Voltage Rating 16VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Washable Yes
Body Material Epoxy
Length 0.197" (5.00mm)
Temperature Range - Operating -25°C to 70°C
Electrical Life 200 Cycles
Win Source Part Number 128573-CS-4-12XTB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CS-4-12XTB CAD Model

Description

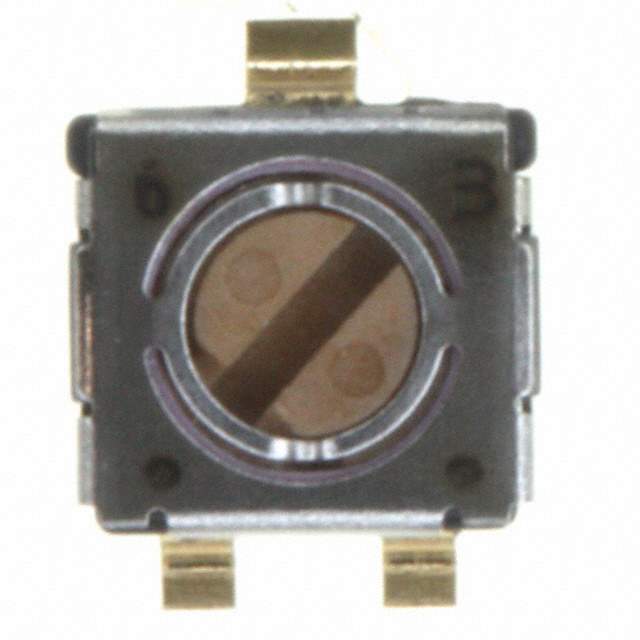

CS-4-12XTB

The CS-4-12XTB is a versatile electronic component designed for high performance and reliability in a wide range of applications. Its advanced technology ensures minimal power consumption while maximizing output efficiency.

  • Smart Home Devices
  • Wearable Technology
  • Automotive Electronics

Features and Benefits

  • Compact design for space-saving integration
  • High thermal efficiency for optimal performance
  • Low noise operation enhancing user experience
  • Long operational lifespan reducing replacement costs

This component is ideal for developers and engineers looking for a reliable and efficient solution to enhance their projects.
