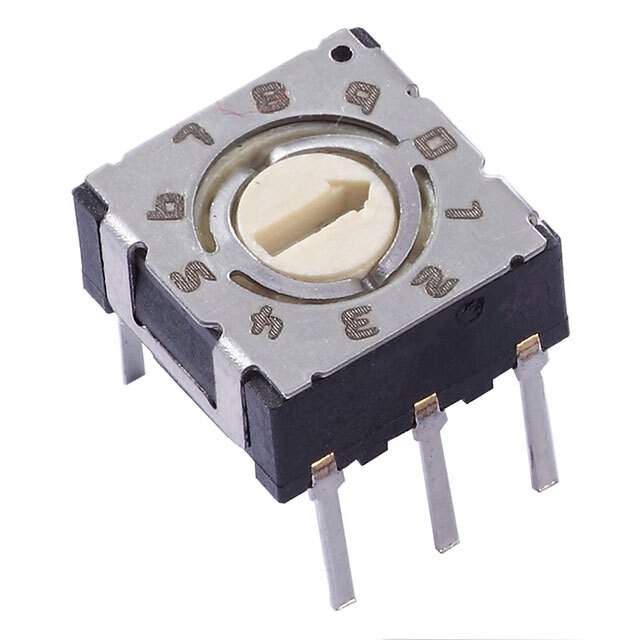

220ADA10 Real Image
Same model may have multiple batches, images only for reference.

220ADA10

Part No 220ADA10
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH ROTARY DIP BCD 100MA 50V / Dip Switch BCD 10 Position Through Hole Rotary for Tool Actuator 100mA 50VDC
Datasheet
220ADA10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr CTS Electrocomponents
Series 220
Package Tube
Circuit BCD
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 50VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.144" (3.66mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Length 0.283" (7.20mm)
Mechanical Life 10,000 Steps
Electrical Life 10,000 Steps
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CT3067
Standard Package 66
Win Source Part Number 1031961-220ADA10
Ultra Librarian 3D Model Ultra Librarian 220ADA10 CAD Model

Description

The CTS Electrocomponents 220 series DIP switch has 10 positions and a pitch of 0.100" (2.54mm).

  • Product Name: 220 Series DIP Switch
  • Manufacturer: CTS Electrocomponents
  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Termination: PC Pin
  • Voltage Rating: 50VDC
  • Actuator Type: Rotary for Tool
  • Actuator Level: Flush, Recessed
  • Washable: No
  • Operating Temperature Range: -40°C to 85°C
  • Electrical Life: 10,000 steps
  • Mechanical Life: 10,000 steps
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS Code: 8536.50.9065
