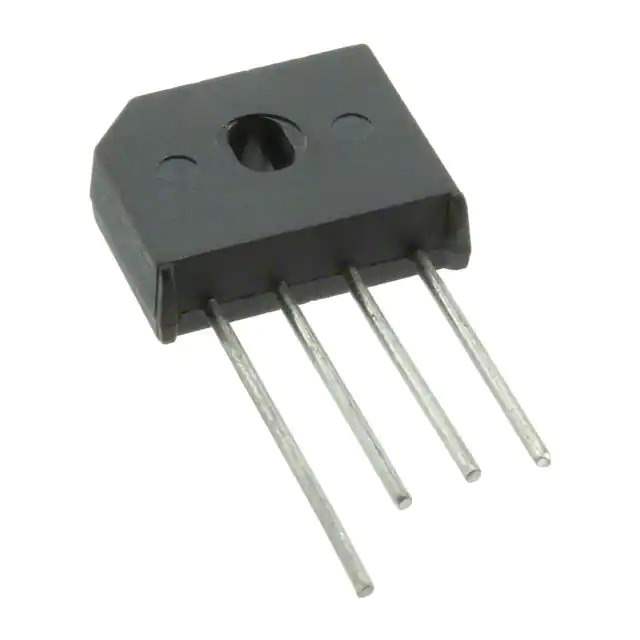

KBU8M Real Image
Same model may have multiple batches, images only for reference.

KBU8M

Part No KBU8M
Manufacturer GeneSiC Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 8A KBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr GeneSiC Semiconductor
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 8 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 8 A
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, KBU
Supplier Device Package KBU
Base Product Number KBU8
Standard Package 400 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 848967-KBU8M
Ultra Librarian 3D Model Ultra Librarian KBU8M CAD Model

Description

The KBU8M is a single-phase bridge rectifier diode with a voltage rating of 1kV and an average rectified current of 8A. It is designed for standard applications and is suitable for through-hole mounting.

  • Voltage Rating: 1kV
  • Average Rectified Current: 8A
  • Mounting: Through-hole
  • Forward Voltage Drop: 1V @ 8A
  • Reverse Leakage Current: 10µA @ 1000V
  • Operating Temperature Range: -55°C to 150°C
  • Manufacturer: GeneSiC Semiconductor
  • Product Status: Active
