Same model may have multiple batches, images only for reference.

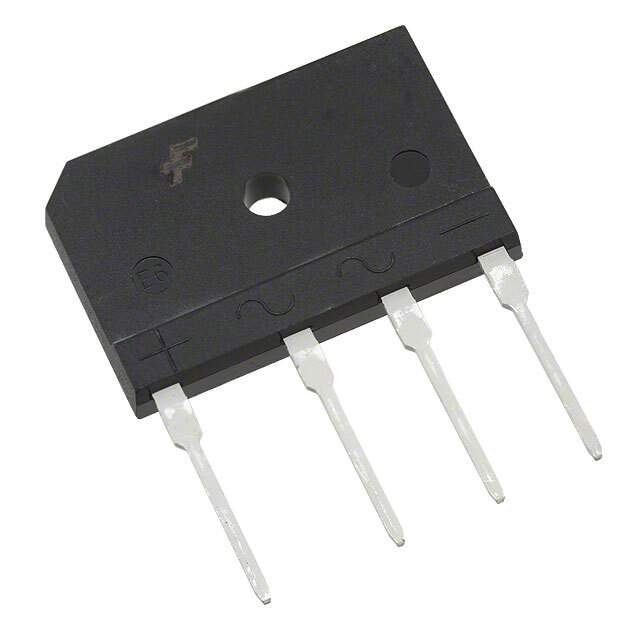

DFB2510 Real Image
Same model may have multiple batches, images only for reference.

DFB2510

Part No DFB2510
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description Glass Passivated Bridge Rectifiers
Datasheet
DFB2510 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 100V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 25A
Current - Reverse Leakage @ Vr 10μA @ 100V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, TS-6P
Manufacturer Package TS-6P
Win Source Part Number 1167210-DFB2510
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name DFB2510
Introduction Date April 01, 2010
ECCN EAR99
Country of Origin Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2027
Quantity per package 1,200
Ultra Librarian 3D Model Ultra Librarian DFB2510 CAD Model

Description

The Fairchild/ON Semiconductor DFB2510 is a single-phase diode with an average rectified current of 25A.

  • Maximum Reverse Leakage Current: 10μA @ 100V
  • Voltage Forward: 1.1V @ 25A
  • Temperature Range: -55°C to 150°C
  • Mounting: through-hole technology
  • Package: 4-SIP, TS-6P
  • Technology: standard
  • Suitable for: Discrete Semiconductor Products
