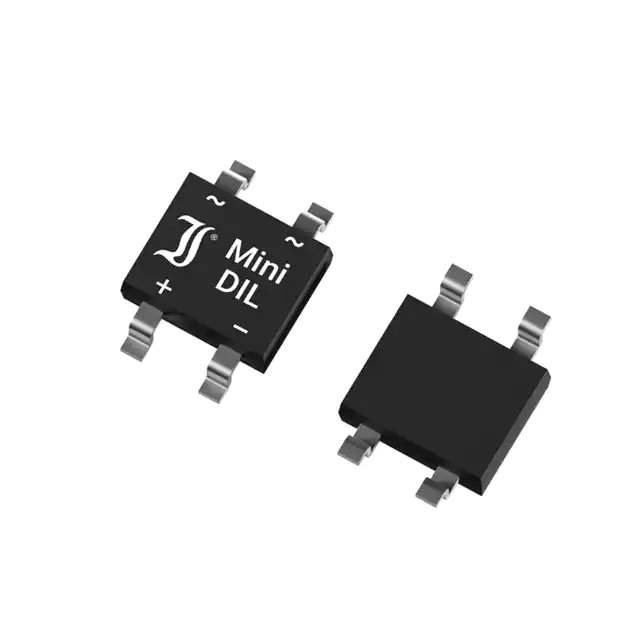

S80 Real Image
Same model may have multiple batches, images only for reference.

S80

Part No S80
Manufacturer DIOTEC Electronics Corporation
Catalog Bridge Rectifiers
Description 1PH BRIDGE MINIDIL 160V 0.8A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 160 V
Current - Average Rectified (Io) 800 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 160 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package TO-269AA MINIDIL SLIM
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 662935-S80
Ultra Librarian 3D Model Ultra Librarian S80 CAD Model

Description

The 662935-S80 is a standard bridge rectifier diode designed for surface mount applications.

  • Maximum Forward Voltage: 1.1V @ 800mA
  • Reverse Leakage Current: 5µA @ 160V
  • Peak Reverse Voltage: 160V
  • Average Rectified Current: 800mA
  • Package: TO-269AA, 4-BESOP
  • Operating Temperature: -50°C to 150°C
  • Widely used in: power supply and conversion applications
