Same model may have multiple batches, images only for reference.

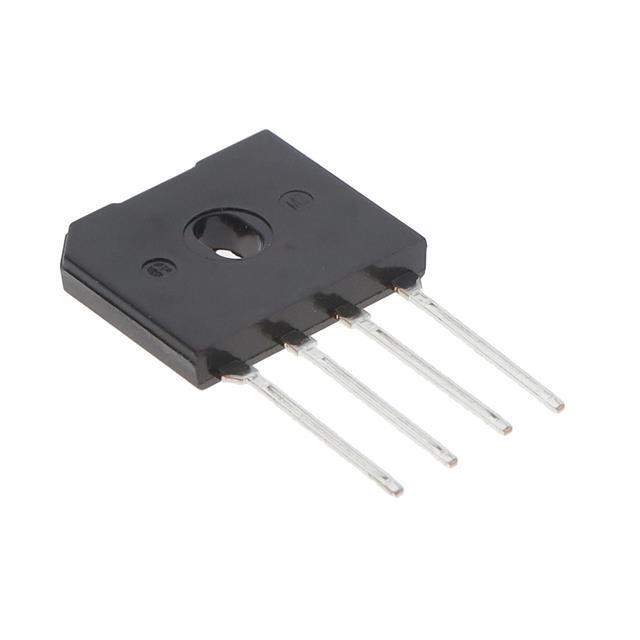

GBU10A Real Image
Same model may have multiple batches, images only for reference.

GBU10A

Part No GBU10A
Manufacturer GeneSiC Semiconductor
Catalog Bridge Rectifiers
Description GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER(VOLTAGE - 50 to 800 Volts CURRENT - 10.0 Amperes) | BRIDGE RECT 1PHASE 50V 10A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 50V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 10A
Current - Reverse Leakage at Vr 5μA at 50V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, GBU
Supplier Device Package GBU
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1177012-GBU10A
Manufacturer Homepage www.panjit.com.tw
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBU10A CAD Model

Description

The GeneSiC Semiconductor GBU10A is a single-phase standard diode with a current average rectified (Io) of 10A.

  • Current Average Rectified (Io): 10A
  • Peak Reverse Voltage: 50V
  • Forward Voltage (Vf): 1.1V @ 10A
  • Mounting Style: Through-Hole
  • Package: 4-SIP, GBU
  • Temperature Range: -55°C to 150°C
